DC Hipot Tester

Home / Products / High Voltage Tester / DC Hipot Tester
HUAYI: Professional DC Hipot Tester Manufacturer



Wuhan HUAYI Electric Power Technology Co.,Ltd. (HUAYI for short) is a professional manufacturer in China, researching and manufacturing electric testing equipment. HUAYI insist developing and marketing independently, and make efforts to improve the products quality, reduce cost, and improve efficiency.





Why Choose Us

Rich Experience

The company was established in 2005 and has more than ten years of professional experience. It is one of the earliest manufacturers of high-voltage testers in China.

Professional Technology Support

Specialize in testing and solutions for more than 18 years. Own experienced engineers. Professional on delivery, installation, debugging, and training.

ISO Certification

We have a professional R&D technical team and strict quality control to ensure safety, accuracy and efficiency. Passed ISO9001 certification and obtained relevant patent certificates.

24 hours After-sales

Professional after-sales service, paying attention to customers' feedback about products; Providing solutions within 24 hours, if the customers have any problem; Act quickly and efficiently.



Product Parameter



Specification

120/2

120/3

120/5

Rated(kV)

120

120

120

Rated(mA)

2

3

5

Rated power(W)

240

360

600

Weight(kg)

10

Volume(mm3)

565*390*190

Voltage cylinder height(mm)

535

Accuracy of output voltage

±(1.0%R±2D)

Accuracy of output current

±(1.0%R±2D)

Ripple factor

≤0.5%

Working mode

Intermittent use, 30 minutes under-rated load

Over-load capacity

The no-load voltage can exceed the rated voltage of 10% for 10 minutes

The maximum charge current is 1.25 times the rated current

Power

AC220V±10% 50HZ

Service conditions

Temperature： -10-40℃

Relative humidity: Less than 85% under 25℃, without moisture

Altitude：1500M under

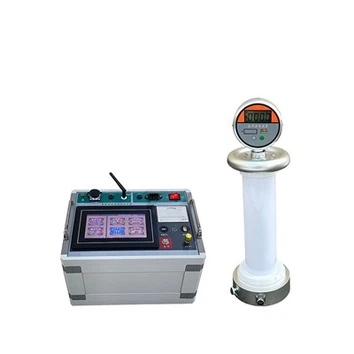

120KV Intelligent DC Hipot Tester



Advantages of DC Hipot Tester

Portability and Power: DC Hipot testers are highly portable for their voltage rating. They require a much lower power input to generate high test voltages, making them ideal for field testing of high-capacitive objects like long cables.



Detection of Specific Faults: They are excellent for pinpointing specific insulation weaknesses, such as concentrated punctures or tracking, as the steady voltage will cause a breakdown at the fault point.



Eco-Efficient Design: The designers specified an energy-efficient concept powered by components with power-saving features, which cut operations costs and limit the environmental footprint.



User-friendly interface: The DC hipot tester is equipped with an interface that is not only intuitive but also provides high-resolution display and visualization of real-time data and diagnostics.




Application of DC Hipot Tester

01/

Electronics Manufacturing: DC Hipot tester is used to verify the insulation of cable assemblies to ensure they meet safety and quality standards. PCBs and their components are tested to ensure that there are no electrical leakage paths or insulation breakdowns.

02/

Medical Devices: DC Hipot tester is crucial for medical equipment to ensure patient safety and the integrity of the devices. Equipment such as medical grade power supplies, patient monitoring systems, and diagnostic devices undergo Hipot tester.

03/

Aerospace and Avionics: Components and wiring in aircraft systems are subject to DC Hipot tester to guarantee reliable operation in demanding and safety-critical environments.

04/

Consumer Electronics: Products like power adapters, chargers, and appliances are tested to ensure that they are electrically safe for consumers to use.

05/

Automotive Industry: Vehicle components, such as electrical harnesses, connectors, and control modules, are subjected to DC Hipot tester to meet safety and reliability requirements.

06/

HVAC and Industrial Equipment: Heating, ventilation, air conditioning (HVAC) systems and various industrial equipment may undergo DC Hipot tester to ensure safe and reliable operation.

07/

Data Centers: Electrical systems and components in data centers are tested to guarantee continuous and reliable operation, as data centers are critical for businesses and organizations.

08/

Renewable Energy: Solar inverters, wind turbine components, and other renewable energy equipment are subjected to DC Hipot tester to verify their electrical safety and reliability.



The Difference Between DC Hipot Tester and VLF Hipot Tester



Feature

DC Hipot Tester

VLF Hipot Tester

Output Waveform

Continuous Direct Current (DC)

Sinusoidal AC at 0.1 Hz

Stress on Insulation

Non-operating stress, different from service conditions

Closely replicates power frequency AC stress

Power Requirement

Very Low

Low, but higher than DC

Portability

Excellent for high-voltage testing

Good, but units are typically larger than DC sets

Best For

Traditional testing of PILC cables, fault finding, specific high-voltage R&D

Modern standard for field testing of XLPE/PE cables, more accurate insulation condition assessment

Detection Capability

Excellent for concentrated faults

Superior for distributed aging, water trees, and overall insulation integrity



Usage Requirements





Safety precautions must be emphasized with a DC hipot tester because the safety of the operator and equipment depends upon them. Check to see that the tester is grounded, and keep everybody at a safe distance during the test. Wear PPE: insulating gloves, safety glasses, and so forth. Ensure that the equipment to be tested is de-energized and isolated from any power supply. Get acquainted with the voltage level and test procedures for testing the equipment.



How To Cooperate With Us





Inquiry: You can contact us online or sending us an inquiry. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
Phone Number: (+86)-18062012971/whatsapp:+8618064115448
E-mail: sales@sinohipot.com/ tina@sinohipot.com



Custom Plan Development: During the consultation, we’ll evaluate your specific requirements and together, craft a custom quality assurance plan tailored to your needs.



Agreement and Setup: Once you’re satisfied with the plan, we’ll finalize the details and set up everything needed to get started.



Quality Assurance Implementation: Our team will then implement the quality assurance protocols on your selected products or processes.



Delivery: Deliver cargos by sea or by air according to requirement.



Packaging and Delivery





Packing detail:

Packing with wooden cases, provide different solutions of shipping way.

Payment:

We accept many payment term, such as T/T, Western Union, L/C.

Warranty period:

One-year warranty, Installation, and commissioning of specific products.

Delivery time:

Most of our products are in stock and can be delivered upon payment. The delivery time usually does not exceed 15 days.



productcate-1-1



Our Certificates



productcate-1-1



FAQ

Q: When can I get the price?

A: Usually we quote within 24 hours after we get your inquiry.

Q: What is your minimum order quantity, can you send me samples?

A: Our minimum order quantity is 1 set, and the sample shipping fee needs to be provided by you.

Q: Do you have the products in stock

A: Most Of our tester has stock.You can contact us to make sure

Q: Is there the products tested before shipping?

A: Our products undergo factory testing and are accompanied by reports.

Q: Would you have a discount?

A: Yes we could offer different discount according to your order quantity. We also hold regular promotional activities every year.

Q: Have your products been exported?

A: We have more than 10 years of export experience. Please contact us to confirm if there is a local partner.

Q: What about the transportation?

A: Usually we take door to door express delivery ,cause it's more convenient and fast.

Q: What is a DC hipot test?

A: A DC hipot tester, also known as a high potential tester, is an electrical device used to check the insulation against electrical hazards and the integrity of electrical equipment and components. To test for operational voltage, this ứng dụng applies a very high DC voltage to the insulation of devices.

Q: What is the difference between AC and DC hipot?

A: DC hi-pot tester provides a more accurate reading of the leakage current as it only reads real current. AC hipot tester, on the other hand, measures total current and does not provide accurate leakage current measurement.

Q: What is the leakage current for DC hipot?

A: The test waveform, whether DC or an ac sine wave is also typically specified. What constitutes a failure? Hipot test failure is when the leakage current exceeds a specified limit or rapidly increases in an uncontrolled manner, or if arcing is observed. Typical leakage current limits range from 0.5 to 20 mA.

Q: How does a DC hipot tester work?

A: When a DC hipot tester is operated, a high DC voltage is generated and applied across the insulating layer of the device under test (DUT). The tester then measures the leakage current flowing through the insulation to the earth. If the leakage current reaches a certain threshold level, it indicates that the insulation is compromised.

Q: How do you choose the right DC hipot tester?

A: There are several factors to consider when selecting the right DC hipot tester for your requirements. First, choose one that fits within the voltage range you will be working with and has the required features for your applications. Apart from adjustable voltage settings and digital readouts, a safety auto-shutdown should be included. Since portability matters a lot for field testing, keep it in mind.

Q: How often should you have DC hipot testing done?

A: The frequency of DC hipot testing depends on various factors, such as industry standards, usage of equipment, and environmental conditions. Usually, DC hipot testing must be done once a year or every six months for critical equipment or in harsh environments. Regular testing keeps the insulation in its best condition and also helps prevent premature failures from suddenly occurring.
