Product Introduction

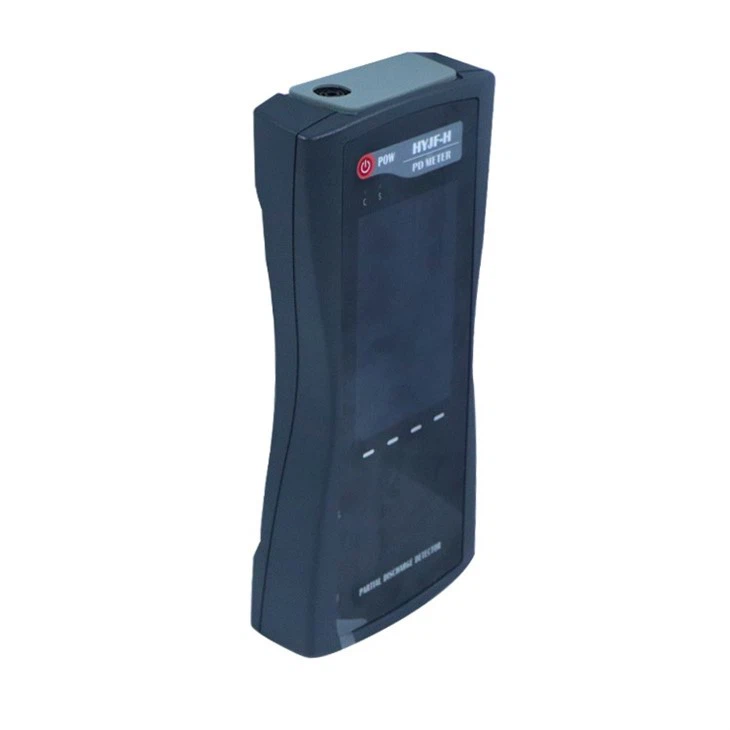

HYJF-H Partial Discharge Detector
This product can be widely used in partial discharge detection of power systems, including high voltage switchgear, ring network cabinets, voltage / current transformers, transformers (including dry type transformers), GIS, overhead lines, cable, and other equipment insulation state detection, through the following indicators to measure the discharge degree of electrical equipment:
Partial discharge intensity detection: By measuring the discharge signal in one power frequency cycle, the partial discharge intensity is characterized according to the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: By measuring the discharge signal in one power frequency cycle, the discharge pulse is extracted and the partial discharge frequency is characterized according to the number of discharge pulses.
Product Parameter
|
TEV measurement |
AE measurement |
|||
|
Measuring range |
0-60 dBmV |
Measuring range |
-6dBμV to 68dBμV |
|
|
Resolution |
1dB |
Resolution |
1dB |
|
|
Precision |
±1dB |
Precision |
±1dB |
|
|
Maximum pulse per cycle |
1400 |
Frequency Range |
20~200 kHz |
|
|
Measurement frequency band |
3~100MHz |
|
|
|
|
AA measurement |
UHF measurement |
|||
|
Measuring range |
-6dBμV~68dBμV |
Detection frequency |
300-2000MHz |
|
|
Resolution |
1dB |
Measuring range |
0-60 dBmV |
|
|
Precision |
±1dB |
Sensitivity |
＜1dBm |
|
|
Sensor center frequency |
40 kHz |
Sensor frequency band |
300-2000MHz |
|
|
HFCT measurement |
||||
|
Sensor transmission impedance |
5mV/mA |
|||
|
Detection frequency |
1～30MHz |
|||
|
Sensitivity |
≤50pC |
|||
|
Hardware |
||||
|
Shell |
ABS |
|||
|
Screen |
4.0-inch RGB LCD screen, resolution 800*480 |
|||
|
Sampling accuracy |
12bit |
|||
|
Synchronization mode |
Internal synchronization, external synchronization |
|||
|
Connector |
USB interface (also charger input) 3.5mm stereo headphone jack External sensor input interface |
Wifi
|
||
|
Earphone |
8 Ω minimum |
|||
|
SD card |
Standard configuration 16G ~ 64G |
|||
|
Built-in battery |
3.7V/5000mAh lithium battery |
|||
|
Operating hours |
Approx. 6 hours |
|||
|
Charger |
AC 90-264V or DC 5V |
|||
|
Operating temperature |
-20 ~ 50℃ |
|||
|
Humidity |
20-85% relative humidity |
|||
|
Volume and weight |
210*100*35(mm) 0.4KG(host) |
|||
Product Feature And Application
1. Configure different sensors to achieve partial discharge detection of almost all high-voltage electrical equipment;
2. Provide time domain waveforms, PRPD, PRPS, and other discharge patterns to realize the analysis of different discharge types.
3. Humanized man-machine interface facilitates data management of different devices;
4. Built-in ultrasonic sensor and transient ground voltage (hereinafter referred to as TEV) sensor, which can be connected with special sensors such as transformers, GIS, overhead lines, cables, etc.;
5. Adopt a non-intrusive detection method, no need to power off during the test process, no need to configure an additional high voltage source, it is more convenient to use than a traditional pulsed partial discharge detector.
6. The test bandwidth range is 30kHz ~ 2.0GHz, which is suitable for the detection principles of various frequency bands.
Prodection Details
Accessory
|
Name |
Qty |
Unit |
Note |
|
|
1 |
Detection host |
1 |
set |
Standard configuration |
|
2 |
External contact ultrasonic sensor |
1 |
pcs |
Optional, used for partial discharge detection of transformers, GIS, motors, etc. |
|
3 |
High-frequency transformer |
1 |
pcs |
Optional, used for cable partial discharge detection |
|
4 |
UHF sensor |
1 |
pcs |
Standard configuration |
|
5 |
Test line |
1 |
set |
Standard configuration |
|
6 |
Charger |
1 |
pcs |
Standard configuration |
|
7 |
USB cable |
1 |
pcs |
Charging and PC data communication |
|
8 |
Manual |
1 |
pcs |
|
|
9 |
Ex-factory inspection report |
1 |
pcs |
|
|
10 |
Certificate of conformity |
1 |
pcs |
|
|
11 |
Warranty Card |
1 |
pcs |
|
External sensors
|
Contact ultrasonic sensor |
|
Used for partial discharge detection of transformers, GIS, motors, etc. Frequency: 40~150kHz |
|
High-frequency transformer |
|
Used for cable partial discharge detection Frequency: 1～30MHz |
|
UHF sensor |
|
Used for GIS partial discharge detection Frequency: 300-2000MHz |
|
Wave condenser |
|
Used for insulator, overhead line detection Frequency: 40~200kHz |
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment method that is convenient
3. Sales service: 24-hour online contact, choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees one year of lifetime technical support for you. Online response to customers' technical problems.
On-Site Service
