HUAYI: Professional Tan Delta Tester Manufacturer

Wuhan HUAYI Electric Power Technology Co.,Ltd. (HUAYI for short) is a professional manufacturer in China, researching and manufacturing electric testing equipment. HUAYI insist developing and marketing independently, and make efforts to improve the products quality, reduce cost, and improve efficiency.

Why Choose Us

Rich Experience

The company was established in 2005 and has more than ten years of professional experience. It is one of the earliest manufacturers of high-voltage testers in China.

Professional Technology Support

Specialize in testing and solutions for more than 18 years. Own experienced engineers. Professional on delivery, installation, debugging, and training.

ISO Certification

We have a professional R&D technical team and strict quality control to ensure safety, accuracy and efficiency. Passed ISO9001 certification and obtained relevant patent certificates.

24 hours After-sales

Professional after-sales service, paying attention to customers' feedback about products; Providing solutions within 24 hours, if the customers have any problem; Act quickly and efficiently.

Product Parameter

Work condition	-15℃∽40℃		RH＜80%
Principle of anti-interference	Variable frequency
Power supply	AC 220V±10%		Permissible generator
Output high voltage	0.5KV∽10KV(can make 12kV)		Every 0.1kV
	Accuracy		2%
	Max current		200mA
	Capacitance		2000VA
Self-excitation power supply	AC 0V∽50V/15A		50HZ,60HZ single frequency,45HZ/55HZ,47.5HZ/52.5HZ,55HZ/65HZ,57.5HZ/62.5HZ,Automatic double frequency conversion
Resolution	Tgδ: 0.001%		Cx: 0.001pF
Accuracy	△Tgδ:±(reading*1.0%+0.040%)
	△C x :±(reading*1.0%+1.00PF)
Test range	Tgδ	No limitation
	C x	15pF ＜ Cx ＜ 300nF
		10KV	Cx ＜ 60 nF
		5KV	Cx ＜ 150 nF
		1KV	Cx ＜ 300 nF
	CVT test		Cx ＜ 300 nF
LCR test range	L>20H(2kV)		R>10KΩ(2kV)
LCR test accuracy	1%	Angular resolution	0.01
CVT turn ratio range	10∽10000
CVT turn ratio accuracy	1%	CVT turn ratio resolution	0.01
Size(host)(mm)	350(L)×270(W)×270(H)
Size(accessory)(mm)	350(L)×270(W)×160(H)
Memory capacity	200 GB Support U disk data storage
Weight(host)	22.75Kg
Weight(accessory)	5.25Kg

Benefits of Tan Delta Tester

01/

Enhanced Equipment Reliability
Tan Delta tester significantly improves the reliability of electrical equipment. By regularly assessing the condition of insulation, maintenance teams can identify potential weaknesses before they lead to failure.

02/

Early Detection of Insulation Failures
One of the key benefits of Tan Delta tester is its ability to detect insulation failures in their early stages. Early detection allows for timely interventions, preventing catastrophic failures and ensuring continuous operation.

03/

Reduced Maintenance Costs
Implementing Tan Delta tester can lead to significant cost savings in maintenance. This not only minimizes downtime but also helps extend the lifespan of electrical equipment, resulting in lower overall maintenance expenses.

04/

Portable and Easy to Operate
Modern Tan Delta testers are compact, lightweight, and equipped with user-friendly interfaces for field and laboratory use. They can perform measurements at a wide range of voltage levels and under a wide range of environmental conditions.

Applications of Tan Delta Tester

Transformer Insulation Assessment: Tan delta tester is primarily used to evaluate the condition of transformer insulation, identifying potential insulation weaknesses or defects.

Diagnostic Testing: By comparing tan delta values over time, it is possible to detect gradual insulation deterioration and schedule timely maintenance or repairs.

Quality Control: Tan delta testing is performed during transformer manufacturing to ensure the quality and integrity of the insulation system.

Electrical Maintenance: Whether for routine checks or during the commissioning of new equipment, tan delta tester is essential for ensuring the continued safe operation of high-voltage systems.

Structure

Power Supply Unit: Generates the required test voltage for insulation measurement.

Capacitor: Provides a reference for accurate loss angle measurement and calibration.

Connection Terminal: The interface where the insulation sample or equipment is connected.

Voltage Sensors: Detect and transmit electrical signals for analysis.

Display Module: Includes the user interface, touchscreen or buttons, and display for results.

Safety System: Ensures safe operation with grounding, overvoltage, and interlock protections.

Safety Measures During Testing

Safety is critical during tan delta testing. Follow these guidelines to protect yourself and the equipment:

Wear Protective Gear

Use insulated gloves and safety goggles to prevent electrical injuries.

Ensure Proper Grounding

Verify that the equipment is properly grounded to avoid electrical shocks.

Monitor Voltage Levels

Keep an eye on the applied voltage to prevent overloading the insulation.

Maintain a Safe Distance

Stand away from the equipment during testing to minimize exposure to potential hazards.

Test Environment

Conduct the test in a controlled environment to minimize external factors that may affect the results, such as humidity or temperature.

How To Cooperate With Us

Inquiry: You can contact us online or sending us an inquiry. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
Phone Number: (+86)-18062012971/whatsapp:+8618064115448
E-mail: sales@sinohipot.com/ tina@sinohipot.com

Custom Plan Development: During the consultation, we’ll evaluate your specific requirements and together, craft a custom quality assurance plan tailored to your needs.

Agreement and Setup: Once you’re satisfied with the plan, we’ll finalize the details and set up everything needed to get started.

Quality Assurance Implementation: Our team will then implement the quality assurance protocols on your selected products or processes.

Delivery: Deliver cargos by sea or by air according to requirement.

Packaging and Delivery

Packing detail:	Packing with wooden cases, provide different solutions of shipping way.
Payment:	We accept many payment term, such as T/T, Western Union, L/C.
Warranty period:	One-year warranty, Installation, and commissioning of specific products.
Delivery time:	Most of our products are in stock and can be delivered upon payment. The delivery time usually does not exceed 15 days.

productcate-1-1

Our Certificates

productcate-1-1

FAQ

Q: When can I get the price?

A: Usually we quote within 24 hours after we get your inquiry.

Q: What is your minimum order quantity, can you send me samples?

A: Our minimum order quantity is 1 set, and the sample shipping fee needs to be provided by you.

Q: Do you have the products in stock

A: Most Of our tester has stock.You can contact us to make sure

Q: Is there the products tested before shipping?

A: Our products undergo factory testing and are accompanied by reports.

Q: Would you have a discount?

A: Yes we could offer different discount according to your order quantity. We also hold regular promotional activities every year.

Q: Have your products been exported?

A: We have more than 10 years of export experience. Please contact us to confirm if there is a local partner.

Q: What about the transportation?

A: Usually we take door to door express delivery ,cause it's more convenient and fast.

Q: What is a Tan Delta Tester?

A: A Tan Delta Tester, also known as a dissipation factor or dielectric loss tester, is an instrument used to measure the insulation quality of electrical equipment such as transformers, cables, bushings, and generators. It determines the tangent of the dielectric loss angle (tan δ), which indicates how much energy is lost as heat in the insulation material.

Q: What does “Tan Delta” mean in electrical testing?

A: “Tan Delta” (tan δ) is the ratio of the resistive current (loss component) to the capacitive current (charging component) in an insulating material. A higher tan δ value means greater dielectric losses and poorer insulation quality.

Q: How often should you perform Tan Delta tester?

A: You should test critical equipment annually. For less critical systems, testing every two to three years is sufficient. Adjust the frequency based on environmental conditions and equipment usage.

Q: What equipment can you test using Tan Delta testers?

A: Tan Delta testers work on transformers, cables, bushings, and generators. Some kits are versatile, while others are tailored for specific applications like substations.

Q: How do you interpret Tan Delta values?

A: Compare test results to industry standards or baseline values. Normal readings indicate healthy insulation. Abnormal values suggest issues like moisture or contamination that require corrective action.

Q: Can the Tan Delta tester be used for oil-filled equipment?

A: Yes, the Tan Delta test is commonly used for assessing the insulation condition of oil-filled transformers and bushings, where it helps identify issues like moisture or contamination in the oil.

Q: What is the principle behind Tan Delta measurement?

A: The Tan Delta Tester applies an AC voltage to the insulation and measures both the current through the specimen and the phase angle between voltage and current. The tangent of the phase angle difference between the total current and the ideal capacitive current gives the tan δ value.

As one of the most professional tan delta tester manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy cheap tan delta tester made in China here from our factory.

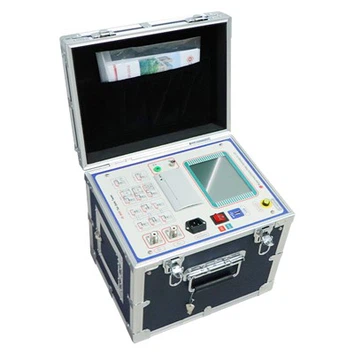

Tan Delta Tester, Transformer Tan Delta Tester, Transformer Dissipation Factor Test Set
