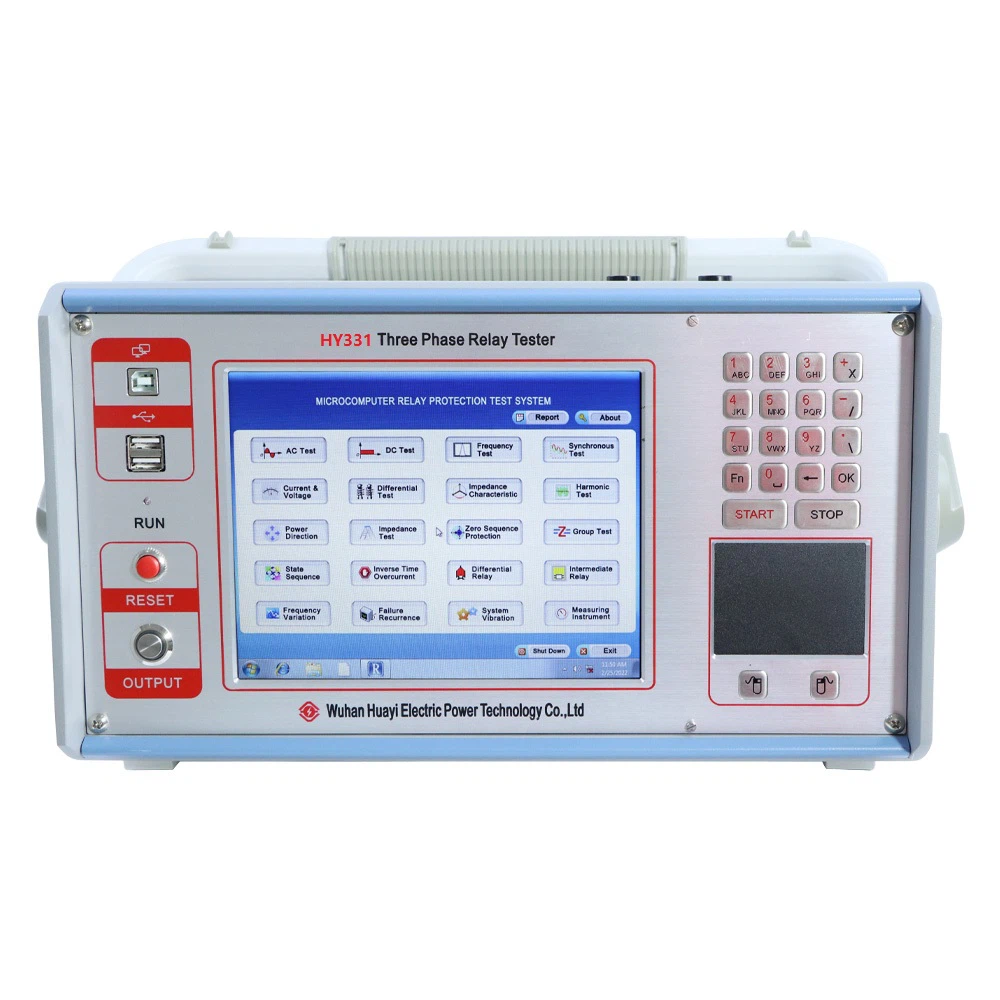

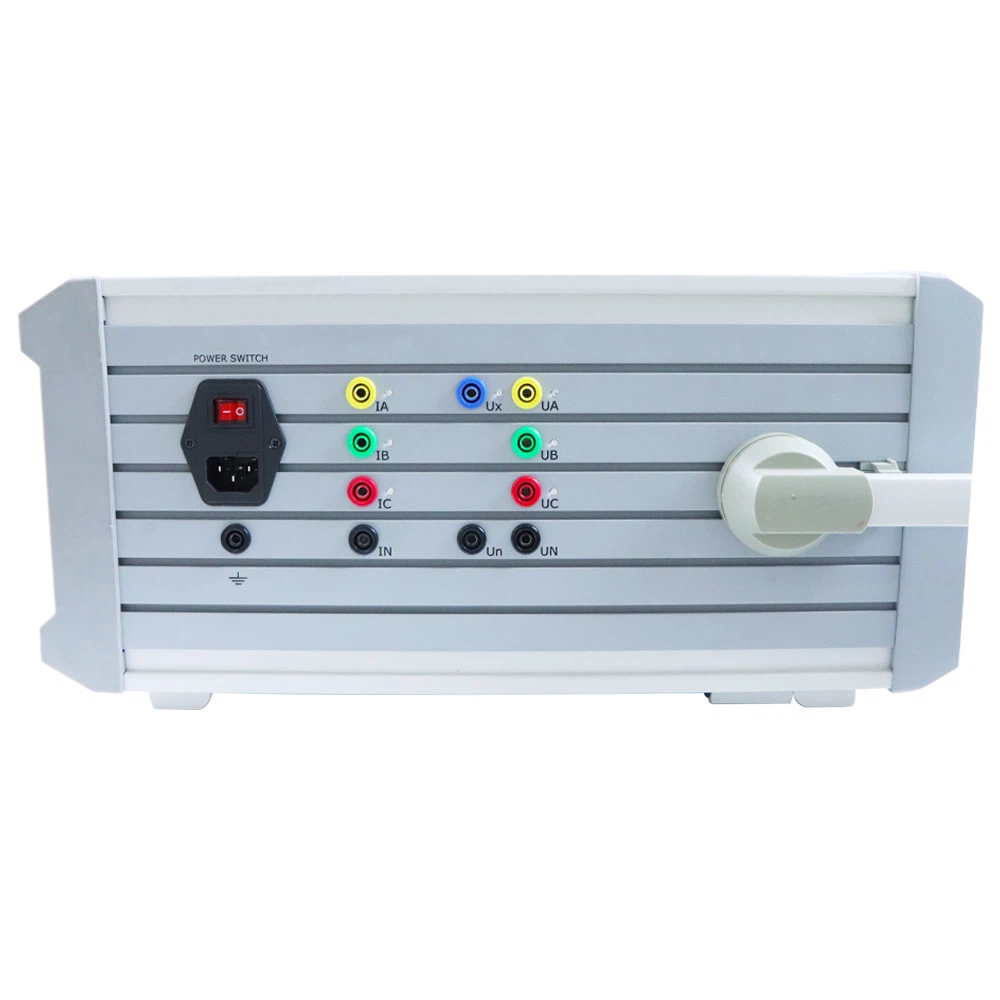

HY331 3 Phase Protection Relay Tester
Our company refers to the standard of DL/T624-2010 "Technical Conditions for Microcomputer Test Equipment for Relay Protection", widely listens to the views of users, summarizes the advantages and disadvantages of similar products in China, and makes full use of modern advanced microelectronics technology and devices to develop the new miniaturized microcomputer relay protection tester.
Adopted classic Windows 7 operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4-inch resolution of 800 × 600 TFT true color display, which provides rich visual information, including the current working condition and all kinds of help information. The software features a self-calibrating function, which eliminates the need for manual calibration by adjusting relays after opening the case, thereby significantly improving accuracy and stability.
Product Parameter
|
AC current source |
|
DC current source |
|
Phase current output ( RMS ) |
0～40A/phase |
30A/phase |
|
Accuracy: 0.2% |
0.5% |
|
|
3-phase in parallel max output |
120A |
|
|
Phase current values allow for a long time |
10A |
|
|
Phase current max output power |
420VA |
|
|
3-phase in parallel, max output power |
900VA |
|
|
3-phase in parallel current, max output allowable working time |
10s |
|
|
Frequency range |
0～1000Hz |
|
|
Accuracy: 0.001Hz |
|
|
|
harmonic order |
2～20times; phase :0～360° |
|
|
Accuracy: 0.1° |
|
|
AC voltage source |
|
DC voltage source |
|
Amplitude range |
(0～125V)/phase, accuracy: 0.2% |
0～±150V accuracy 0.5% |
|
Line voltage range |
0～250V |
0～±300V |
|
Phase voltage / Line voltage output power |
70VA/100VA |
90VA/180VA |
|
Frequency range |
0~1000Hz accuracy: 0.001Hz |
|
|
harmonic order |
2～20times; phase :0～360° |
|
|
Accuracy: 0.1° |
|
Switch terminal
|
Switch input terminals |
8 pairs |
|
Dead contact |
1-20mA, 24V active output inside the device. |
|
Potential flip |
0--6V DC low level; 15-250V DC high level |
|
Switch output terminals |
4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A |
Time measurement range
|
Range |
1ms～9999s |
|
Accuracy |
1ms |
|
Dimension |
440×230×480mm |
|
|
Weight |
17.5Kg |
|
|
Power |
AC 220V±10% |
50Hz,10A |
Product Feature And Application
HY331 3 Phase Protection Relay Tester features:
1. It cannot only test traditional relays and protectors, but also modern microcomputer relays, special for transformer differential protection and transfer equipment.
2. All technical indicators fully meet the standard DL/T624-2010: Technical condition of the relay computer test device.
3. Classic Windows 7 operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4-inch resolution of 800 × 600 TFT true color display, which provides rich visual information, including the current working condition and all kinds of help information.
4. Integrated metal industrial keyboard and touchpad, you can use multi-functional metal keys and a touchpad to complete a variety of operations.
5. Use a USB interface to communicate directly with the PC, without any conversion cable, easy to use.
6. The power amplifier adopts a high-fidelity linear power amplifier, which not only ensures the accuracy of small current but also ensures the stability of large current.
7. Improved self-protection function, using a reasonable design of the heat dissipation structure, and has a variety of reliable and perfect protection measures and power soft start, with a certain degree of fault self-diagnosis and blocking function.
8. Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
9. With a separate DC auxiliary voltage source, output voltage 110V(1A)and 220V(0.6A), provide relays or protective devices that require DC power.
10. The software with a self-calibrating function, which avoids calibrating accuracy by adjusting relays after opening the case, greatly improves the stability of the accuracy
Prodection Details

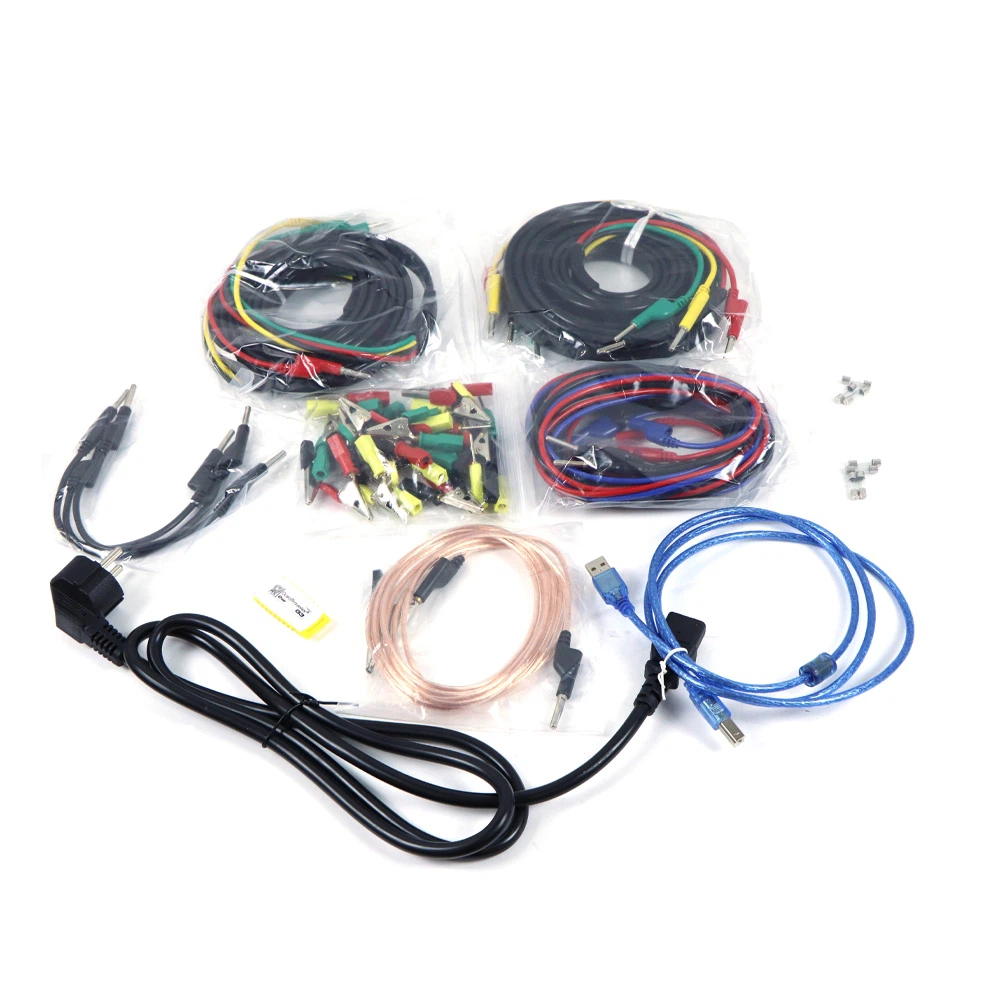

Accessory
|
