Wuhan HUAYI Electric Power Technology Co., Ltd is a professional manufacturer in China, researching and manufacturing cable fault locator. HUAYI insists on developing and marketing independently, and make efforts to improve the products' quality, reduce cost, and improve efficiency. Widely used in electricity, water conservancy, petroleum, railway, mining, chemical industry and other industries.
Why Choose Us
Rich Experience
The company was established in 2005 and has more than ten years of professional experience. It is one of the earliest manufacturers of high-voltage testers in China. Our products are involved AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable tester and other electric instruments.
Professional Technology Support
Specialize in testing and solutions for more than 18 years. Own experienced engineers. Professional on delivery, installation, debugging, and training.
ISO Certification
We have a professional R&D technical team and strict quality control to ensure safety, accuracy and efficiency. Passed ISO9001 certification and obtained relevant patent certificates.
24 hours After-sales
Professional after-sales service, paying attention to customers' feedback about products; Providing solutions within 24 hours, if the customers have any problem; Act quickly and efficiently.
Types of Partial Discharge Tester
Handheld PD Tester
Using advanced anti-interference components and unique gate display circuit, and has four kinds of high frequency elliptic scanning, for manufacturers, scientific research departments, power department field use.

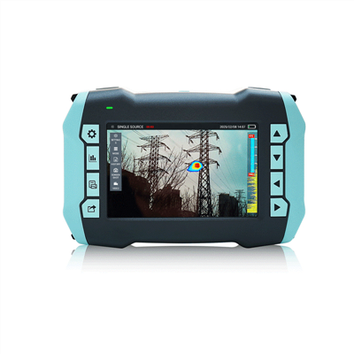

Acoustic Wave Partial Discharge Detector
It is specialized in testing insulation strength and leakage current for electric power equipment. Adopts voltage doubling electric circuit with high frequency.

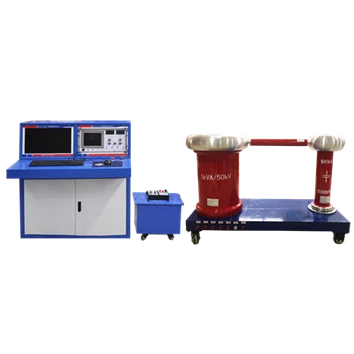

Partial Discharge Test Equipment
By measuring the discharge signal in one power frequency cycle, the discharge pulse is extracted and the partial discharge frequency is characterized according to the number of discharge pulses.
Digital Partial Discharge Detector with double channels
The HYJF-2000 Partial discharge detector uses the worldwide standard Windows operating system and an intuitive control and display panel to allow even inexperienced operators to learn quickly with minimal training.
Product Parameter
|
TEV measurement |
AE measurement |
|||
|
Measuring range |
0-60 dBmV |
Measuring range |
-6dBμV to 68dBμV |
|
|
Resolution |
1dB |
Resolution |
1dB |
|
|
Precision |
±1dB |
Precision |
±1dB |
|
|
Maximum pulse per cycle |
1400 |
Frequency Range |
20~200 kHz |
|
|
Measurement frequency band |
3~100MHz |
|
|
|
|
AA measurement |
UHF measurement |
|||
|
Measuring range |
-6dBμV~68dBμV |
Detection frequency |
300-2000MHz |
|
|
Resolution |
1dB |
Measuring range |
0-60 dBmV |
|
|
Precision |
±1dB |
Sensitivity |
＜1dBm |
|
|
Sensor center frequency |
40 kHz |
Sensor frequency band |
300-2000MHz |
|
|
HFCT measurement |
||||
|
Sensor transmission impedance |
5mV/mA |
|||
|
Detection frequency |
1～30MHz |
|||
|
Sensitivity |
≤50pC |
|||
|
Hardware |
||||
|
Shell |
ABS |
|||
|
Screen |
4.0 inch RGB LCD screen, resolution 800*480 |
|||
|
Sampling accuracy |
12bit |
|||
|
Synchronization mode |
Internal synchronization, external synchronization |
|||
|
Connector |
USB interface (also charger input) 3.5mm stereo headphone jack External sensor input interface |
Wifi |
||
|
Earphone |
8 Ω minimum |
|||
|
SD card |
Standard configuration 16G ~ 64G |
|||
|
Built-in battery |
3.7V/5000mAh lithium battery |
|||
|
Operating hours |
Approxi. 6 hours |
|||
|
Charger |
AC 90-264V or DC 5V |
|||
|
Operating temperature |
-20 ~ 50℃ |
|||
|
Humidity |
20-85% relative humidity |
|||
|
Volume and weight |
210*100*35(mm) 0.4KG(host) |
|||
Benefits of Partial Discharge Tester
Comprehensive Testing
Combines hipot testing and partial discharge detection in a single test, providing a thorough assessment of insulation integrity.
01
Preventive Maintenance
Early detection of partial discharges allows for proactive maintenance, reducing the risk of catastrophic failures.
02
Improved Reliability
Ensures that electrical equipment can operate reliably under high voltage conditions, preventing unexpected downtimes.
03
Safety Assurance
Helps maintain safety standards by ensuring insulation can withstand operational and overvoltage conditions.
04
Data Analysis
Advanced PD testers often include software for data analysis, trend monitoring, and report generation, aiding in long-term asset management.
05
Application of Partial Discharge Tester
Power Industry
In the power industry, PD tester is mainly used to detect the insulation status of high-voltage switchgear, ring network cabinet, voltage/current transformer, transformer (including dry-type transformer), GIS (gas insulated switchgear), overhead lines and cables.
Railway System
In the railway system, PD tester is used to detect the insulation status of power equipment and signal equipment along the railway, such as traction transformers, signal power transformers, cable lines, etc.
Petrochemical Power Supply System
In the petrochemical power supply system, PD tester is used to detect the insulation status of power equipment such as transformers, cable lines, motors, etc. in petrochemical enterprises.
Aerospace Testing Field
In the aerospace testing field, PD tester is used to detect the insulation status of electrical equipment on aerospace vehicles, including generators, motors, cable lines, etc.
Automotive Industry
In the automotive industry, particularly with electric and hybrid vehicles, PD testers are used to monitor high-voltage batteries and electrical systems, ensuring they are properly insulated.
Accessory
|
Name |
Qty |
Unit |
Note |
|
|
1 |
Detection host |
1 |
Set |
Standard configuration |
|
2 |
External contact ultrasonic sensor |
1 |
Pcs |
Optional, used for partial discharge detection of transformers, GIS, motors, etc. |
|
3 |
High frequency transformer |
1 |
Pcs |
Optional, used for cable partial discharge detection |
|
4 |
UHF sensor |
1 |
Pcs |
Standard configuration |
|
5 |
Test line |
1 |
Set |
Standard configuration |
|
6 |
Charger |
1 |
Pcs |
Standard configuration |
|
7 |
USB cable |
1 |
Pcs |
Charging and PC data communication |
|
8 |
Manual |
1 |
Pcs |
|
|
9 |
Ex-factory inspection report |
1 |
Pcs |
|
|
10 |
Certificate of conformity |
1 |
Pcs |
|
|
11 |
Warranty Card |
1 |
Pcs |
|
Please use it indoors, the ambient temperature is -20℃～50℃, and the relative humidity does not exceed 80%.
Please stay away from flammable and explosive dangerous goods.
To prevent interference or leakage accidents, please turn off the power switch when charging.
If liquid or corrosive substances come into contact with the instrument, stop using it immediately and turn it off, and hand it over to professionals for treatment.
The external sensor interface uses an imported connector. Do not rotate the connector to avoid damaging the connector.
When pulling out the sensor connector, just hold the connector of the metal shell and pull it outward. Do not pull the connecting wire.
Before using the external sensor for testing, be sure to connect the sensor to the host before testing. It is strictly forbidden to plug and unplug the test wire during operation!
Prodection Details
How To Cooperate With Us
Please contact us with any questions about products, services, or technology issues. We will always be with you and listen to your needs.
Our address
Gaoxin 4th Road, No.40, Wuhan city, China
Phone Number
(+86)-18062012971/whatsapp:+8618064115448
Sales@sinohipot.com/ tina@sinohipot.com
Packaging and Delivery
|
Packing detail: |
Packing with wooden cases, provide different solutions of shipping way. |
|
Payment: |
We accept many payment term, such as T/T, Western Union, L/C. |
|
Warranty period: |
One-year warranty, Installation, and commissioning of specific products. |
|
Delivery time: |
Most of our products are in stock and can be delivered upon payment. The delivery time usually does not exceed 15 days. |
Our Certificates
As one of the most professional partial discharge tester manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy cheap partial discharge tester made in China here from our factory.
Partial Discharge Tester, hipot test for 33kv cable, cable pd testing
