Product Introduction
ZGS DC Hipot generator tester adopts a high-frequency voltage doubler circuit, advanced PWM high-frequency pulse width modulation technology, and closed-loop adjustment, which greatly improves voltage stability. Use high-power IGBT devices and drive technology and special screen leakage, isolation, and grounding measurements according to the theory of electromagnetic inclusiveness. The DC high-voltage generator is high-quality, convenient, and portable, and can withstand rated voltage discharge without damage. It has reliable overvoltage, overcurrent and zero closing protection functions, and a 0.75 times voltage switching function. Equipped with zero position closing protection functions, with a 0.75 times voltage latch function, and with a timing relay, which can set a timing sound alarm during the test.
It is mainly suitable for DC withstand voltage test or DC leakage current test for zinc oxide arresters, power cables, transformers, circuit breakers, generators, and other high-voltage electrical equipment in power departments, industrial and mining, metallurgy, steel, and other enterprise power departments.
1. Conductivity current test for valve arrester
2. DC withstand voltage test and leakage current measurement for power transformer
3. DC withstand voltage test and leakage current measurement for high voltage cable (35~500kV and below)
4. U1mA DC reference voltage test and 0.75U1mA leakage current test for zinc oxide arrester
Product Parameter
ZGS DC Hipot generator tester parameters
|
Model |
200/2 |
200/3 |
200/5 |
300/2 |
300/3 |
400/5 |
|
Rated voltage(kV) |
200 |
200 |
200 |
300 |
300 |
400 |
|
Rated current(mA) |
2 |
3 |
5 |
2 |
3 |
5 |
|
Rated power(W) |
400 |
600 |
1000 |
600 |
900 |
2000 |
|
HV control unit(kg) |
5.5 |
6 |
6.5 |
6.5 |
6.5 |
7.5 |
|
HV Cylinder weight(kg) |
8.7 |
9 |
9 |
11 |
11 |
11.5 |
|
Cylinder height(mm) |
970 |
970 |
970 |
1250 |
1250 |
1250 |
|
Voltage Accuracy |
±(1.0%read＋2b) |
|||||
|
Accuracy Of Current |
±(1.0%read＋2b) |
|||||
|
Ripple Factor |
≤0.5% |
|||||
|
Voltage Stability |
When voltage change±10% stability≤1% |
|||||
|
Overload Capacity |
The no-load voltage can exceed the rated voltage by 10% for 10 minutes |
|||||
|
Max charging current is 1.25 times the rated current |
||||||
|
Power Supply |
Single phase current 50Hz 220V±10% |
|||||
|
Working Way |
Intermittent use: rated load for 30 minutes |
|||||
|
1.1 times rated voltage: 10 minutes |
||||||
|
Work Condition |
temperature:-10℃～+40℃ |
|||||
|
relative humidity: less than 85% under 25℃, without moisture |
||||||
|
altitude:1500M below |
||||||
|
Capacitive Load Capacity |
The capacity of the test object is unlimited |
|||||
|
It can be charged at 1.5 times rated current |
||||||
|
Structure |
Electrical insulation voltage cylinder |
|||||
|
Air insulation, no leakage |
||||||
|
High Voltage Control Unit Feature |
High accuracy 0.75UDC1mA One touch button(accuracy≤1.0%),Suitable for zinc oxide arrester test |
|||||
|
Overvoltage protection using a digital dialing switch, clear at a glance |
||||||
|
Portable case, more convenient on-site |
||||||
|
Protection Function |
Internal over voltage protection, internal over current protection |
|||||
|
External overvoltage protection (protection voltage can be set), external overcurrent protection, or breakdown protection |
||||||
|
Internal power protection |
||||||
|
Non-zero start protection |
||||||
|
Timed sound alarm |
||||||
Product Feature And Application
ZGS DC Hipot generator tester features:

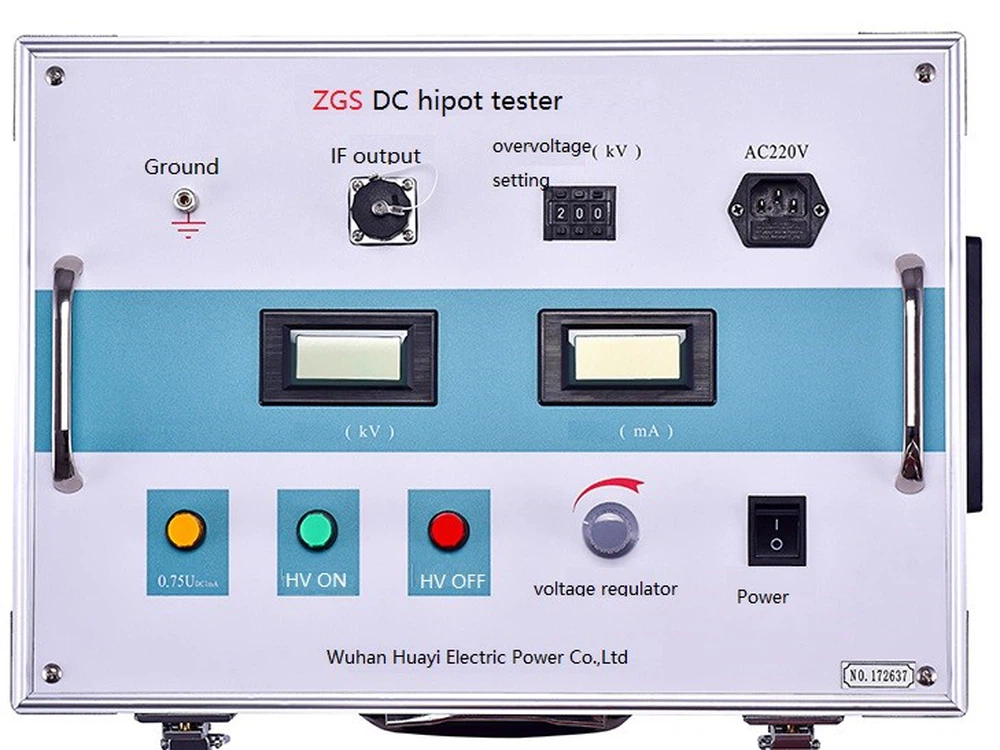

1. High precision and accurate measurement. The voltmeter on the control cabinet displays the voltage applied to load-tested equipment. No need to add a voltage divider, easy to connect. Equipped with high and low voltage ends to measure leakage current. High voltage end adopts round shield digital indication displaying, not worrying discharge shock. It has an excellent anti-jam function, which is suitable for field operation.
2. With stable voltage regulation, the regulation is smooth at the whole range. The output voltage regulation adopts an imported single multiturn potentiometer. Stable boost process and highly accurate adjustment.
3. With negative polarity output, zero start, continuous adjustment, over-voltage, over-current, zero position, grounding protection, and special break-line protection functions. It can protect circuits with automatic, perfect, and reliable protection to make safe operation.
4. Adopt advanced technology, medium frequency circuit, and latest PWM pulse width modulation technology and high power IGBT, which makes more stable high voltage output and smaller ripple factor.
5. With 0.75 times voltage conversion, convenient to test the Zinc Oxide arrester.
6. Over-voltage setting uses a digital dial switch, displaying data directly and visually (unit KV).
7. The sampling adopts a special nanosecond sensor and nanosecond optical isolation element, which can quickly and completely shut off the DC main circuit to protect the instrument from damage.
8. The cylinder adopts a new material, light and stable. With 3 support feet at the bottom, increase the stability. The outer surface of the cylinder is coated with special insulation materials, good electrical performance, strong moisture capacity, and no leakage.
9. Aluminum alloy case with small volume, light weight, good appearance, more stable, convenient to use on-site.
Prodection Details
Test on site
Accessory
|
Number |
Name |
Amount |
Number |
Name |
Amount |
|
1 |
Control cabinet |
one |
7 |
Fuse |
two |
|
2 |
High voltage doubler |
one |
8 |
Ground lead |
one |
|
3 |
High voltage cable |
two |
9 |

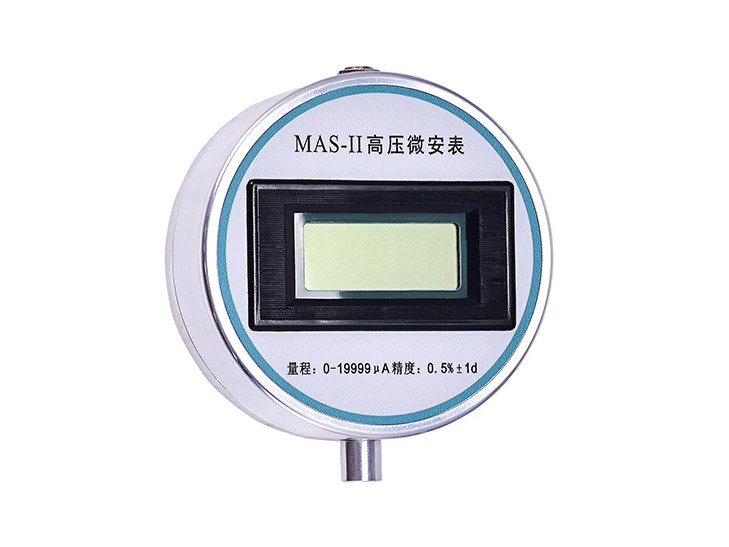

Micro-ampere meter |
one |
|
4 |
Discharging rod |
one |
10 |
Specification |
one |
|
5 |
Water resistance |
one |
11 |
Inspection Report |
one |
|
6 |
Power line |
one |
12 |
Certification |
one |
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees one year of lifetime technical support for you. Online response to customers' technical problems.
