Product Introduction

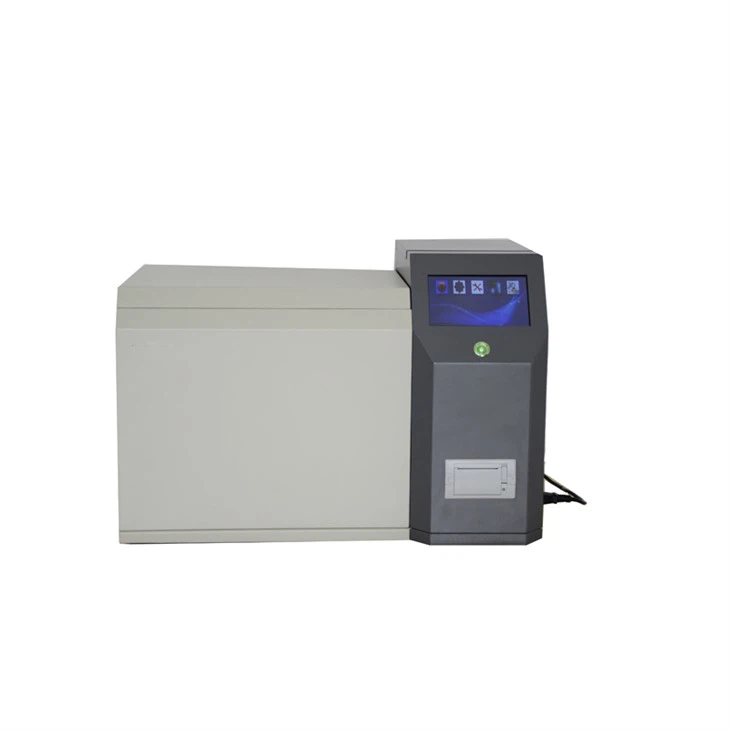

HYSSZ-H Transformer oil Dissolved acid tester (colorimetric method) is designed and manufactured according to the national standard of the People's Republic of China GB/T7598-2008 test method for water-soluble acid of transformer oil in operation and related standards. With a large screen LCD and microprocessor control, it can automatically complete heating, constant temperature, oscillation, sampling, testing, cleaning, printing, and other functions according to the user's set conditions. It can measure 1-6 samples at a time, greatly shortening the user's test time.
Product Parameter
Measuring range: PH=3.6 ~ 7.0
Minimum display unit: 0.1
Constant temperature accuracy: ±2℃
Normal use conditions:
Ambient temperature: (5 ~ 45) ℃
Relative humidity: ≤ 85%
Power supply: AC (220± 10%) V, 50HZ±1HZ
Dimensions: length 660 mm; Width 415mm; Height 470 mm
Weight: 36kg
4. Conditions of use
1. The ambient temperature ranges from 0 to 40 ° C
2. Relative humidity ≤85%
3. Working power AC 220V ± 20%
4. Power supply frequency 50 Hz ± 5 Hz
5. Power consumption < 600 W
5. Instructions for use
Product Feature And Application
1, the instrument according to GB/T7598-2008 standard design and development, can accurately detect transformer oil, turbine oil, oil, and other oil products water-soluble acid automatic test instrument.
2, the color touch LCD screen is easy to operate through the touch LCD screen.
3, the PH value is determined by the colorimetric method.
4, the degree of automation of the instrument is high, only the oil and water are injected according to the standard provisions, and the instrument automatically completes the heating, oscillation, static discharge, oil-water separation, color development, color comparison, display,y and print measurement results, and other functions.
5, one time can process and complete the test of 1-6 samples in sequence.
Accessory
1. One tester
2. 10 sample cups
3. 1 bromocresol green indicator (100ml)
4. Bromocresol Violet Indicator 1 (100ml)
5. Bromocresol green indicator bottle cap 1
6. Bromocresol purple indicator bottle cap 1
7. 6 conical bottles
8. One power cord (250V 10A)
9. Two safety tubes (5A)
10. 6 needles
11. Printer paper 1 roll
12. 1 copy of the product manual
13. One certificate
14. 1 test report.
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees for one year and lifetime technical support for you. Online response to customers' technical problems.
