Product Introduction
When the transformer is cross-connected, overhauled, or when some of its switches are changed, direct current resistance testing of the transformer winding is necessary. In general, to measure the transformer winding or large power output inductor equipment, the traditional electrical bridge method and pressure drop method require much time and energy. Thus, to shorten the measurement time and reduce the workload of testers, our company developed a rapid direct current resistance tester. This is designed with new power supply technology and stable performance, fast measurement, compact, easy to use, high accuracy, and good data reproducibility.
It is an ideal piece of equipment for measuring transformer winding and large power output inductor equipment
Product Parameter
|
ZZC-10A DC Resistance Tester |
|||
|
Gear Of Currents |
Measurement Range |
Gear Of Currents |
Measurement Range |
|
10A |
500uΩ ～ 200mΩ |
100mA |
10Ω ～ 200Ω |
|
5A |
10mΩ ～ 1Ω |
10mA |
50Ω ～ 2kΩ |
|
1A |
100mΩ ～ 20Ω |
1mA |
500Ω ～ 50kΩ |
|
Technical Indicators |
|||
|
Accuracy |
±(reading×0.2%+2) |
Maximum Highest Resolution |
0.1uΩ |
|
Using Conditions & Appearance |
|||
|
Power Supply |
AC220±10% |
Power Frequency |
50/60Hz |
|
Temperature |
-10℃ ～ 50℃ |
Relative Humidity |
≤90%, non-condensing |
|
Weight |
3.6kg (test wires not included) |
Dimension |
325mm(L)×225mm(W) ×125mm(H) |
Product Feature And Application
1. Easy and fast to use with 6 gears of currents (maximum current is 10A) supporting automatic selection.
2. Wide measurement range (500uΩ ~ 50kΩ) and high accuracy.
3. Resistance and temperature conversion.
4. Protecting from back electromotive force, disconnection, power failure, overheating, etc.
5. 5.6-inch super-large industrial high-brightness color LCD screen, which can be read clearly even under strong sunlight.
6. Equipped with a printer for easy data printing.
7. Data storage in the tester or in a USB disk.

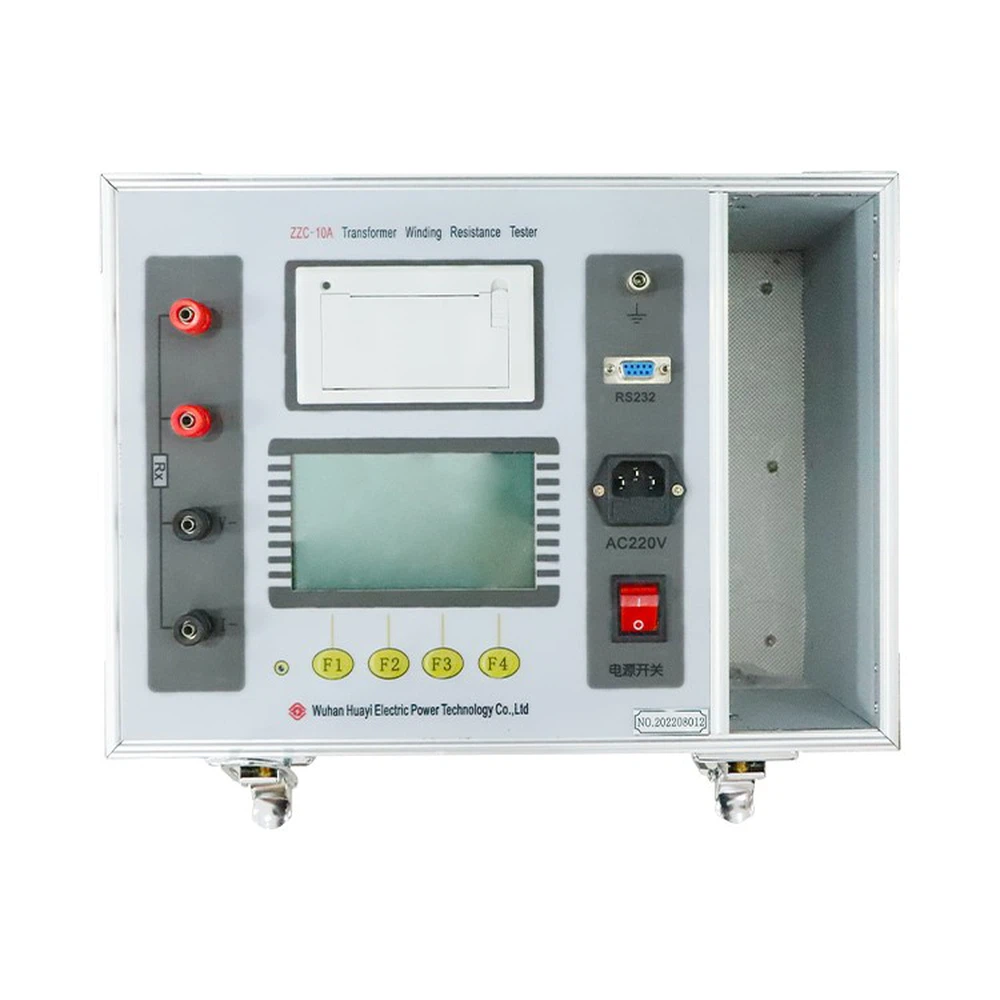

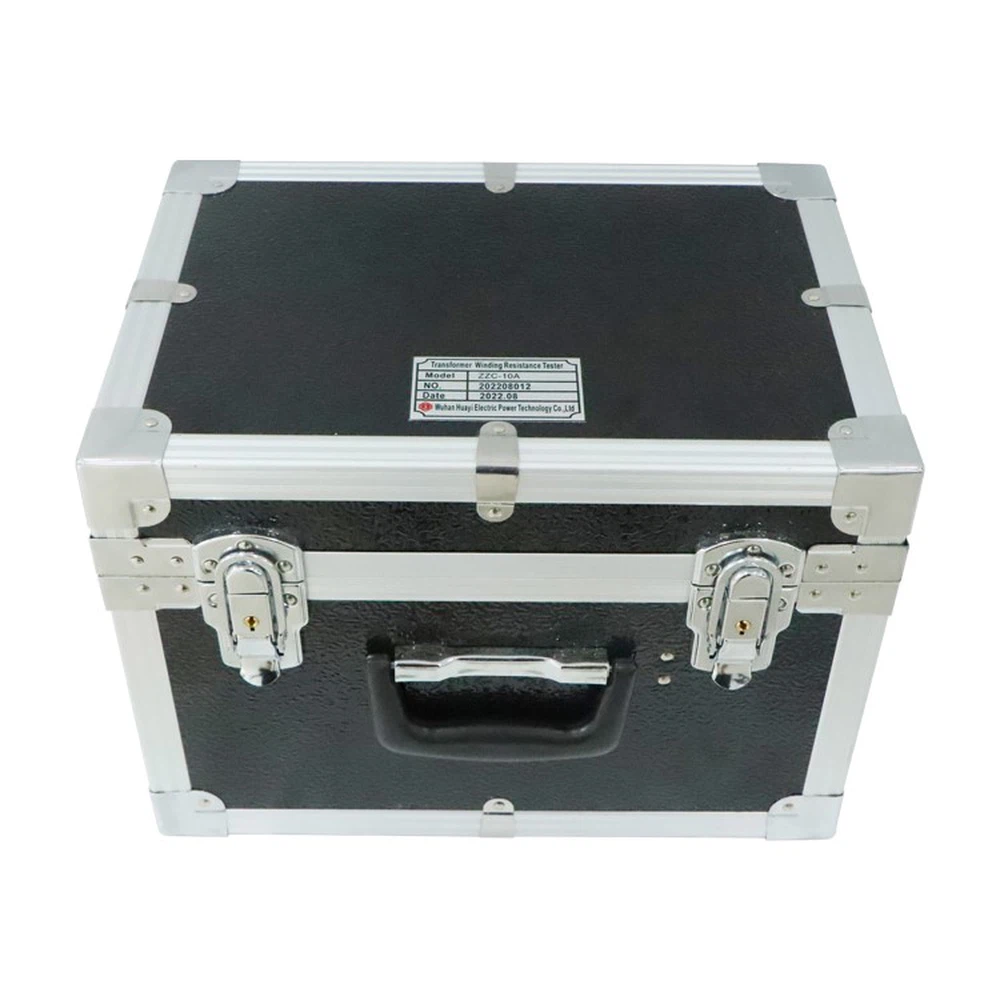

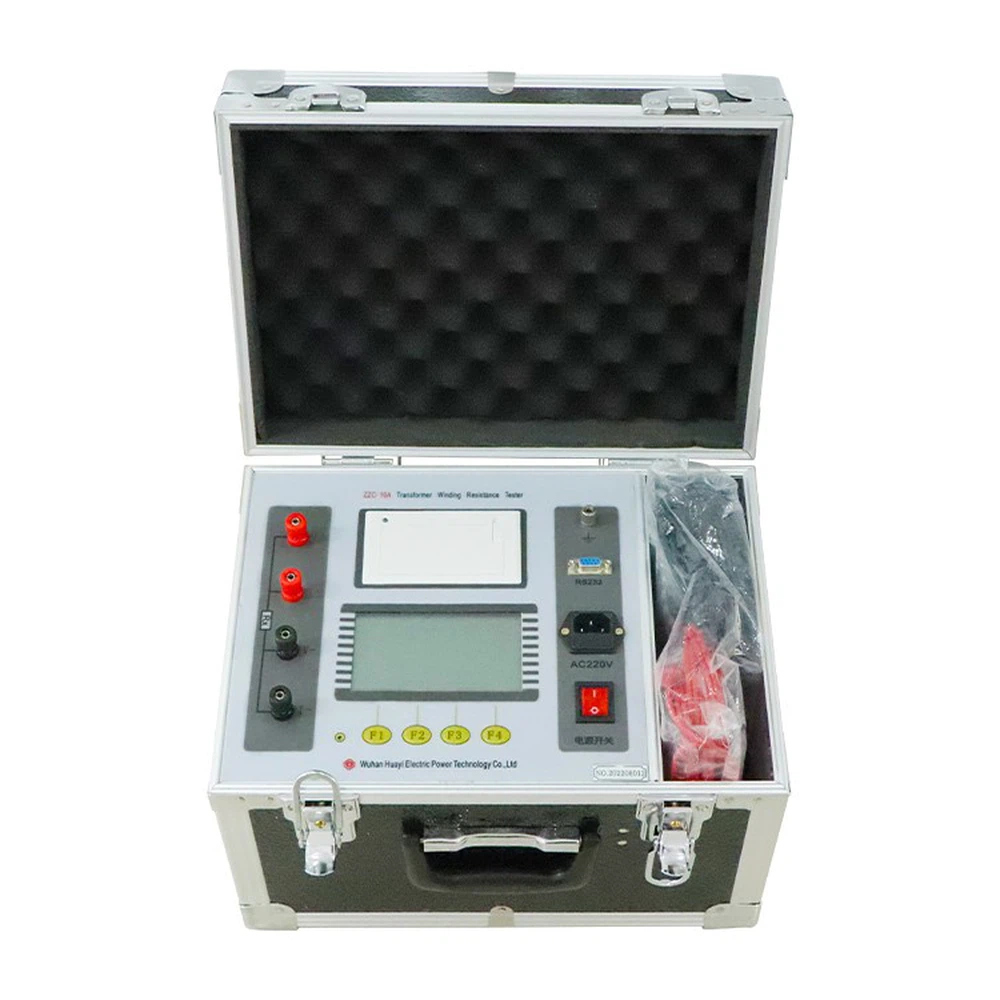

Prodection Details

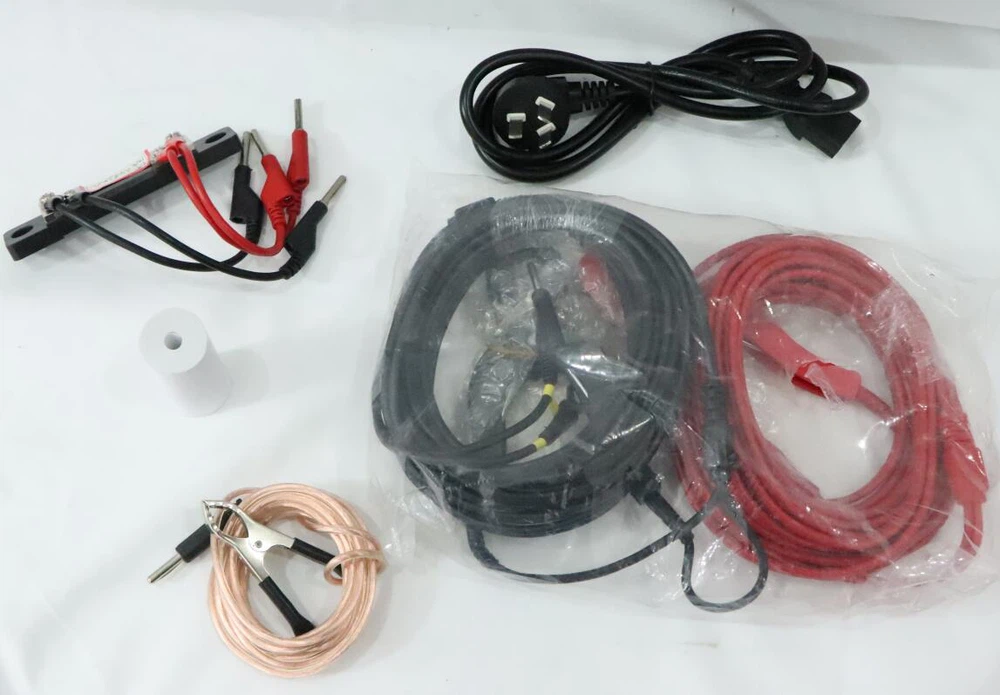

Accessory
|
Number |
Name |
Amount |
|
1 |
Mainframe |
one |
|
2 |
Power line |
one |
|
3 |
Test line |
one |
|
4 |
Printing paper |
two |
|
5 |
Ground lead |
one |
|
6 |
Fuse |
three |
|
7 |
Specification |
one |
|
8 |
Inspection Report |
one |
|
9 |
Certification |
one |
Test onsite
