Product Introduction

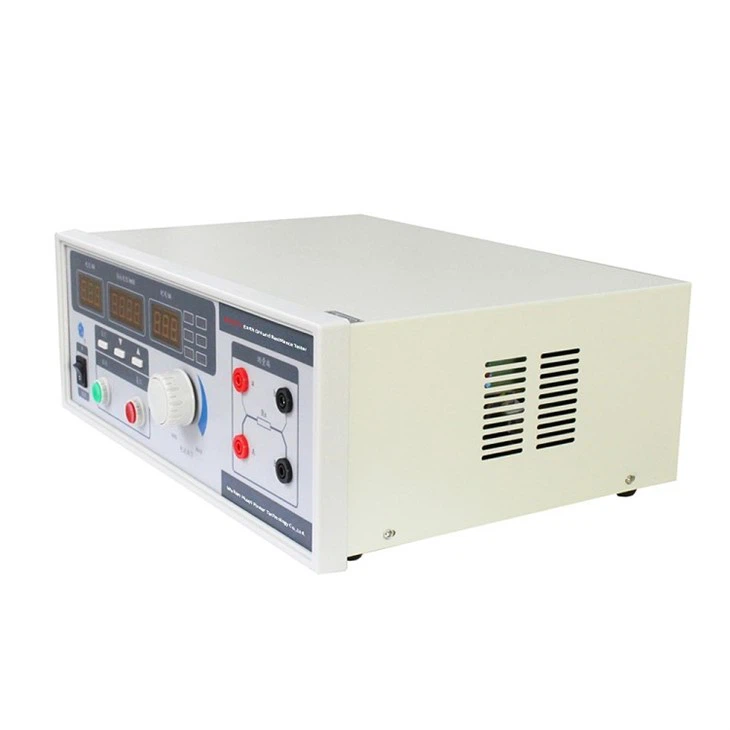

DER2572 Digital earth resistance tester is suitable for measuring the resistance value between the protective grounding end and the palpable metal shell of motors, electrical appliances, instruments and other equipment, lightning protection grounding resistance tester is suitable for measuring the resistance value between the protective grounding end and the palpable metal shell of various motors, electrical appliances, instruments, household appliances and other equipment. It has the advantages of accurate measurement and easy operation..
Product Parameter
|
Service condition |
Temperature |
0℃～40℃ |
||
|
Humidity |
≤80% |
|||
|
Power supply |
AC 220V±10%, 50Hz |
|||
|
Surrounding environment |
Surroundings without strong electromagnetic interference, without a lot of dust and corrosive gas, with good ventilation |
|||
|
Measurement range (mΩ) |
Current (A) |
25.0～30.0 |
1.0～150.0 |
|
|
10.0～25.0 |
1.0～199.9 |
|||
|
4.0～10.0 |
1.0～500 |
|||
|
Basic error |
±(3％r+3d) |
|||
|
Measurement current |
A |
4.0～30.0 |
||
|
Basic error |
±(3％r+3d) |
|||
|
Measurement voltage (AC)(V) |
≤6 |
|||
|
Alarm resistance (mΩ) |
Resolution |
0.1 |
1.0～199.9 |
|
|
1 |
200～500 |
|||
|
Measurement time ( s) |
0～99±5％ |
|||
|
Note: 0 is a continuous testing status, which means measured time is infinity. |
||||
|
Dimension |
380mm×320mm×145mm |
|||
|
Weight ( Kg) |
9 |
|||
Product Feature And Application
1. Automatic compensation test line resistance and clamp contact resistance
2. Automatic measuring range conversion.
3. With over-current and under-current indication and protection functions.
4. Remember the test condition.
5. When the measured value exceeds the alarm value, the instrument has the function of a sound and light alarm.
6. Can be single or continuous testing, suitable for production line operations.
7. Front panel type software correction.
8. Computer communication interface is optional.
9. Control interface optional.

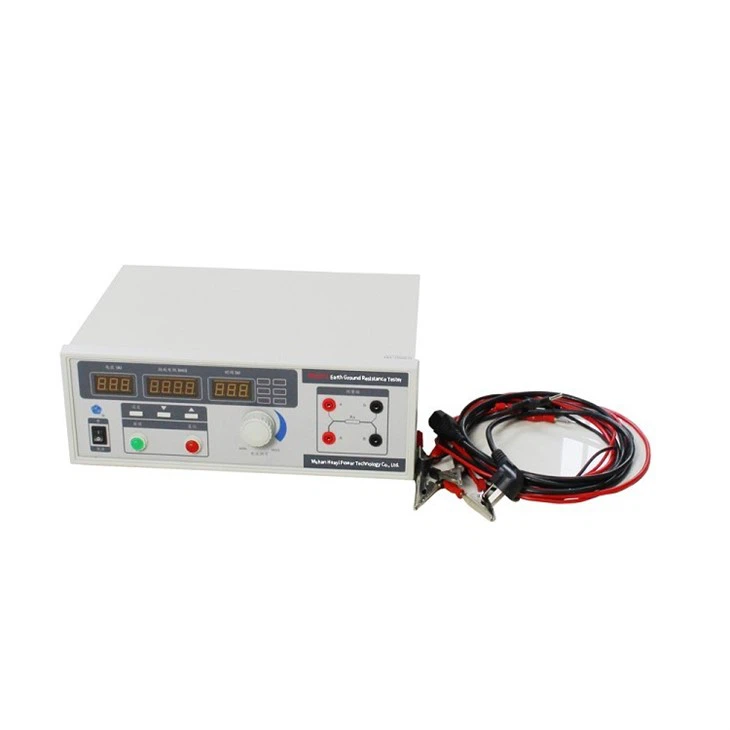

Accessory
|
Serial Number |
Name |
Amount |
|
1 |
Mainframe |
one |
|
2 |
Test line |
one |
|
3 |
Power line |
one |
|
4 |
Specification |
one |
|
5 |
Inspection Report |
one |
|
6 |
Certification |
one |
