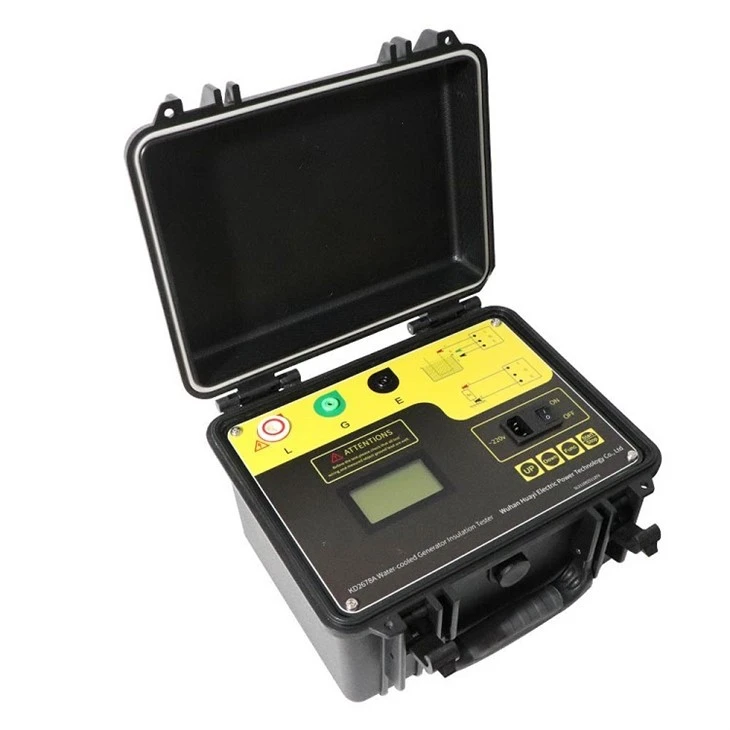

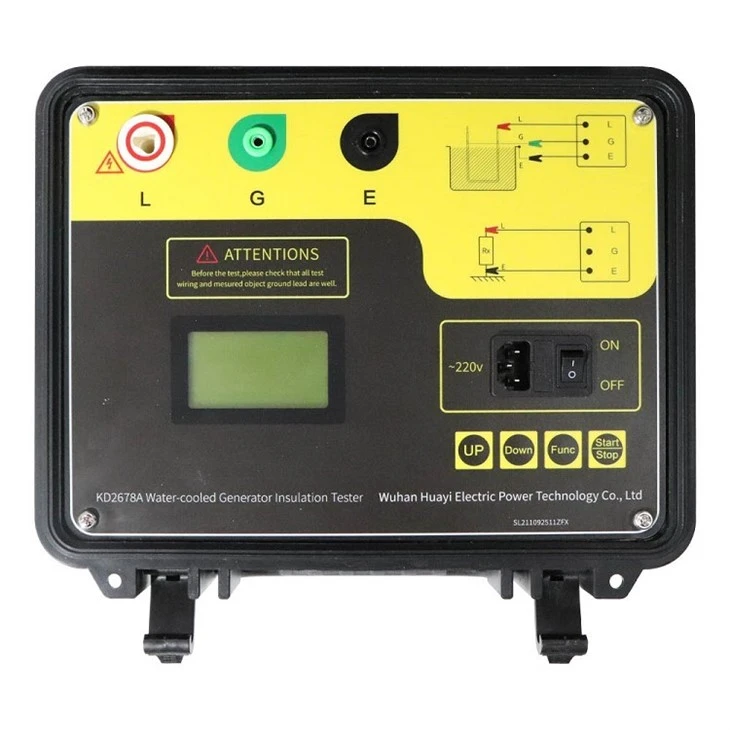

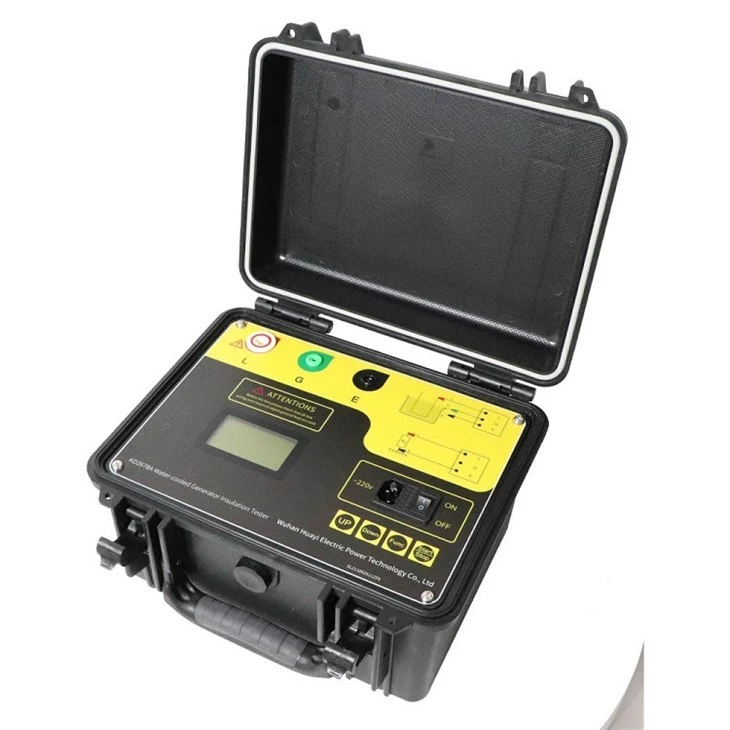

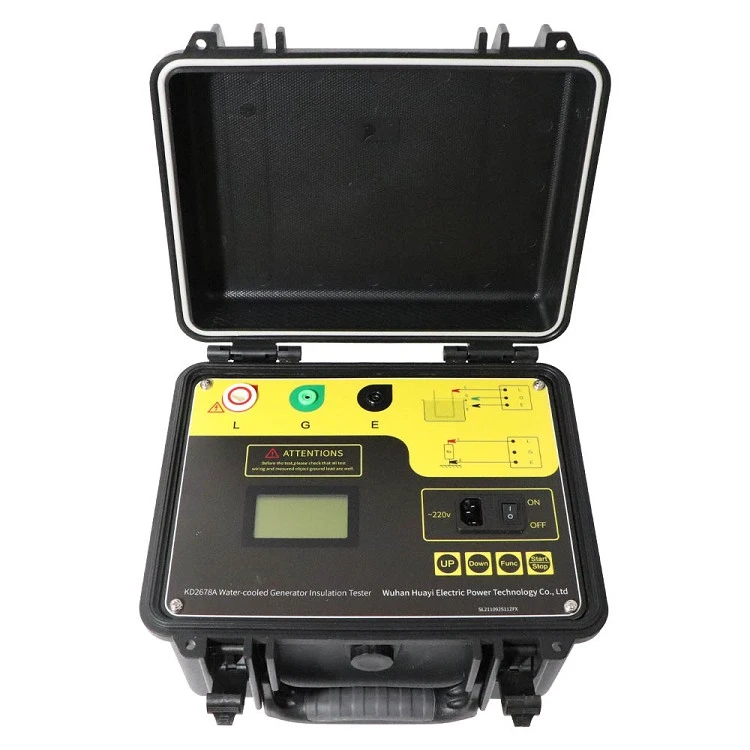

Product Introduction
This product is specially used for measuring and testing of water-cooled generator, and can also be used for insulation testing in laboratory or on site. Output current is over 25mA, and output voltage up to 2500V. Equipped with high precision micro current measuring system, digital booster system, the test can be measured by connecting a high voltage wire and a signal wire. Test automatically, the results are displayed by a large LCD screen, and the results are stored.
Product Parameter
|
Measurement range |
0.1MΩ～100GΩ |
|
Resolution |
min0.1 MΩ |
|
Accuracy |
±（10% ±2d） |
|
Measurement range |
2.5kV |
|
Output short circuit current |
≥25mA |
|
Display |
Dot matrix LCD |
|
Power supply way |
180～270VAC ,50Hz/60Hz±1% |
|
Temperature |
0℃～40℃ |
|
Relative humidity |
20～80％，No condensation |
|
Dimension |
320*240*135mm3 |
|
Test time |
1min~10min(according to test way) |
|
Weight |
5kg |
Product Feature And Application
- It is controlled by 32-bit microcontroller, easy to operate.
- Automatic calculation of absorption ratio and polarization index, and automatic storage of 15 seconds, 1 minute, 2 minutes, 10 minutes per minute data for easy analysis.
- The output current is large, the output is greater than 25mA at 2500V
- High voltage generating module adopts fully closed technology, internal protection resistance, safe and reliable.
- Strong anti-interference ability, can meet the site operation of ultra-high voltage substation.
- Automatic discharge after test, and real-time monitoring discharge process.
Accessory
|
Number |
Name |
Amount |
|
1 |
host |
1 |
|
2 |
Test line |
1set |
|
3 |
Fuse |
2 |
|
4 |
Power line |
1 |
|
5 |
Specification |
1 |
|
6 |
Inspection Report |
1 |
