Product Introduction
GKC-Y Circuit Breaker Timing Test Kit
It is applied to the test for dynamic characteristics of less or more oil breakers, vacuum breakers, SF6 breakers indoor or outdoor. Powerful data analysis function, can effectively analyze the circuit breaker mechanical characteristics of each index parameter.
Can test the closing resistor of the circuit breaker, for circuit breakers with closing resistance, the closing resistance and switching waveform can be measured accurately.
Performance:
◆ Time: intrinsic close and open time of 12 breaks, synchronous in phase-phase, non-synchronous in phase-phase
◆ Re-closing: the time of closing-opening, opening-closing, opening-closing-opening of each break: first opening time, first closing time, secondary opening time, metal short circuit time, none current time value.
◆ Bounce: closing bounce time of each break, bounce frequency, bounce process, bounce waveform, opening rebounded amplitude of each opening
◆ Speed: opening speed, closing speed, maximum speed, time-travel curve
◆ Travel: total travel, opening range, over travel, overshoot travel, rebound amplitude
◆ Current: opening and closing current value and current waveform of opening/closing coil
◆ Operation voltage: DC.30~250V/20A digital adjustable breaker operation power is provided, which can automatically complete the low voltage operation test of the breaker, and measure the operation voltage value of the breaker.
Product Parameter
|
Service condition |
Input power |
220V±10% 50Hz±10% |
|
Atmospheric pressure |
86～106kpa ℃ |
|
|
Temperature |
－10～45℃ |
|
|
Humidity |
≦80%RH |
|
|
Safety Performance |
Insulation resistance |
＞2MΩ |
|
Dielectric strength |
Power to chassis frequency voltage withstands 1.5KV, 1 min, no flashover and arcing. |
|
|
Basic parameters |
Time |
Range: 16000.0ms, resolution: 0.1ms |
|
Error: ①200ms within,0.1ms±1d |
||
|
②200ms above,±2％ |
||
|
③±0.1ms synchronous |
||
|
Speed |
Range: 20.00m/s, resolution 0.01m/s |
|
|
Error:①0～2m/s : ±0.1m/s±1d |
||
|
②>100m/s, ±0.2m/s±1d |
||
|
Range |
Vacuum Circuit Breaker: range-50.0mm, resolution-0.1mm, error-±0.5mm |
|
|
SF6 Circuit Breaker: range-300.0mm, resolution-0.1mm, error-±2mm |
||
|
Oil-minimum breaker: range-600.0mm, resolution-0.1mm, error-±2mm |
||
|
Current |
Range: 20.00A, resolution: 0.01A |
|
|
Fracture type |
12way metal fracture,6 way closing resistance fracture, 3 -way graphite contact |
|
|
Output power |
DC30～250V digitally adjustable /20A (Instantaneous work) |
|
|
Dimension |
Host: 360mm×290mm×280mm: accessory:370mm×280mm×220mm |
|
|
Weight |
Host:6kg, attachment:9kg |
Product Feature And Application
1. The microcontroller is used as the core for sampling.
2. The Low voltage operation test of the circuit breaker is completed automatically.
3. Provide DC30 ~ 250V/20A digital adjustable circuit breaker operation power supply
4. Applied to SF6 breaker, GIS group electric appliance, vacuum breaker, and oil breaker of all types of metal contacts at home and abroad.
5. With linear stroke sensor, and rotary sensor, easy to install, simple.
6. Host with a large screen. straight through style and background LCD, contrast electronic adjustment, display all data and waveform.
7. The Host can store multiple groups of test results of split and closing breaker in the field. With an internal real-time clock, it is convenient to save test dates and time.
8. With an internal fast micro printer, can print all data and diagrams.
9. With strong data analyzing capability, it can analyze each parameter of breaker characteristics
Prodection Details
Accessory
|
Number |
Name |
Amount |
Number |
Name |
Amount |
|
1 |
host |
one |
15 |
Rotating bracket |
three |
|
2 |
Accessories aluminum alloy box |
one |
16 |
Rotating rod |
four |
|
3 |
Controlling line of switch |
one |
17 |
Permanent magnetic base |
one |
|
4 |
External triggering detection line |
one |
18 |
Screw |
one |
|
5 |
Sensor line |
one |
19 |
Cross opener 6*38mm |
one |
|
6 |
Ground lead (4m) |
one |
20 |
Flat opener 3*75mm |
one |
|
7 |
Fracture test line |
ten |
21 |
Clip |
sixteen |
|
8 |
Power line |
one |
22 |
Pin |
three |
|
9 |
Fracture shorting stub |
two |
23 |
Allen wrench |
two |
|
10 |
Shorting stub 40cm |
two |
24 |
Fuse |
one |
|
11 |
Shorting stub 80cm |
two |
25 |
Thermal printing paper |
two |
|
12 |
Rotary speed sensor |
one |
26 |
Specification |
one |
|
13 |
Line sensor |
one |
27 |
Inspection Report |
one |
|
14 |
Rotating speed magnetic base |
ten |
28 |
Certification |
one |
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees for one year and lifetime technical support for you. Online response to customers' technical problems.
Customer Visit

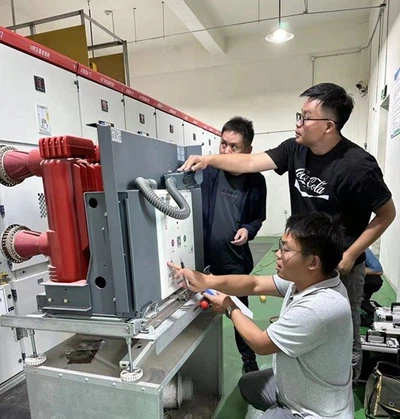

On Site Service
Packing detail
Our service
01
Pre-sale service
Conduct product consultation, product promotion, and marketing activities, and technical support for customer needs.
02
Delivery service
Packing with wooden cases, provide different solutions of shipping way, accept different payment way. Save shipping cost and make sure the products arrive well.
03
After-sales service
Installation and commissioning of specific products; Respond to consumer questions, answer consumer inquiries, and deal with consumer comments.
