Product Introduction

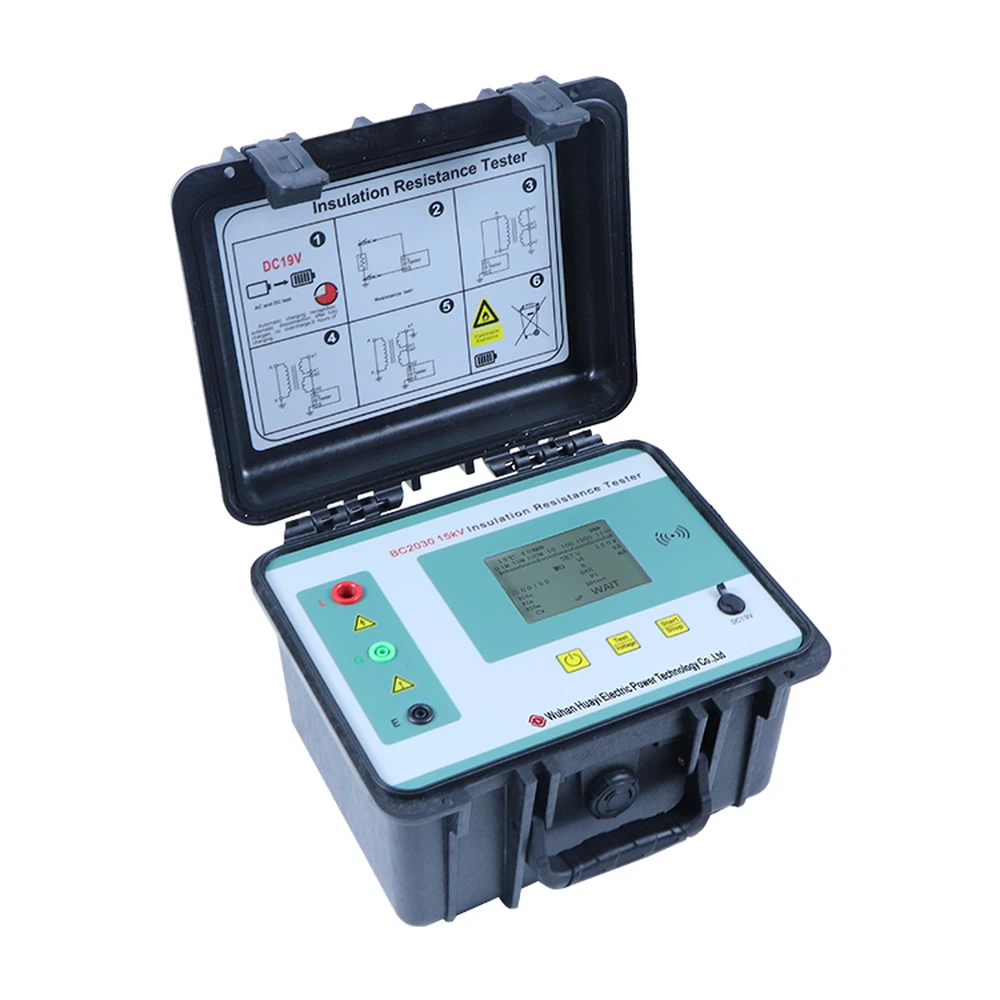

BC2030 10KV Insulation Resistance Tester introduce:
The insulation resistance tester is designed and developed to evaluate the insulation quality of large high-voltage transformers, motors, generators, long-distance power cables, tubular busbars, and other electrical insulation under strong interference in the field of high-voltage substations and power plants. It is especially suitable for the testing field of large capacitive strong interference above 110kv.
Product Parameter
BC2030 10KV Insulation Resistance Tester parameters:
Withstand voltage: AC 10kV 50Hz 1min (between measuring line and housing)
Operating temperature and humidity: -10℃ ~ +50℃ 85%RH
Storage temperature and humidity: -15℃ ~ +55℃ 90%RH
Charging power supply: 230V, 50/60 HZ
Battery power supply: 16V lithium-ion rechargeable battery 2600mAH or measurement while charging, does not affect the test accuracy.
Size: 27 ×22 ×15cm
Weight: 3kg
Test voltage accuracy: 100% to 110% of nominal value
Voltage measurement accuracy: 5%+10V
Short circuit current: 7-10ma.
Display mode: digital and analog pointer dual display.
|
Rated(kV) |
0.25KV, 0.5KV, 1KV, 2.5KV, 5KV, 10KV |
|
Test voltage(kV) |
Rated voltage ×(1±10%)The load resistance is not less than 1% of the range |
|
The max error is 10% RDG range |
(0.001～50)GW/5kV/10kV (0.001～50)GW/2.5kV (0.001～50)GW/1kV (0.001～5)GW/0.5kV (0.001～5)GW/0.25kV |
|
The max error is 20%RDG range |
(50～2000)GW/5kV/10kV (50～200)GW/2.5kV (50～100)GW/1kV (5～10)GW/0.5kV (5～10)GW/0.25kV |
|
No requirements |
>10T |
|
Output short circuit current |
≥5mA |
|
cx |
0.01-9.99uF 20%±5rgd |
|
Absorption ratio, polarization index Measuring range o |
Test range: 0.01 ～9999.99 error: ±(1%RDG＋1d) |
|
Error of output voltage display |
±(3%RDG + 1d) |
|
Live monitoring |
Alarm AC 0-3KV(re) |
Product Feature And Application
1. Designed in strict accordance with safety standards, output voltage: 250v, 500v 1000v, 2500v, 5000v, 10000v
2. Automatic calibration function of the instrument, automatic calibration accuracy before test.
3. Device self-check function, can automatically detect whether the measurement circuit is normal.
4. It has the functions of actual test live voltage measurement, leakage current measurement, and automatic discharge, through the actual test live voltage measurement, can intuitively see whether the drop voltage of the test instrument with load meets the national requirements.
5. It can automatically measure and remember R15S, R60S, and R10min, and automatically display the test value and test time of polarization index (PI), and induced absorption ratio (DAR).
6. Superior anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy and strong anti-interference ability, especially when used for 110KV and above large-capacity transformers and long-distance power cable power systems.
7. Automatic discharge: for large-capacity test products, after automatic discharge, manual discharge is required.
8. Analog pointer and digital display coexist, the digital reflects the insulation resistance accuracy of the test, and the analog pointer can reflect the dynamic change of insulation resistance during the test.
9. Alarm function during voltage boost, high voltage output of buzzer warning, away from the test site, the warning sound will automatically stop after the test.
10. Battery power digital display and under voltage alarm protection function (intelligent battery charging management).
11. Automatic shutdown function: this instrument has an automatic shutdown function. After 10 minutes of measurement, automatic shutdown.
12. Short circuit protection, short circuit state leakage current large stop test.
Prodection Details

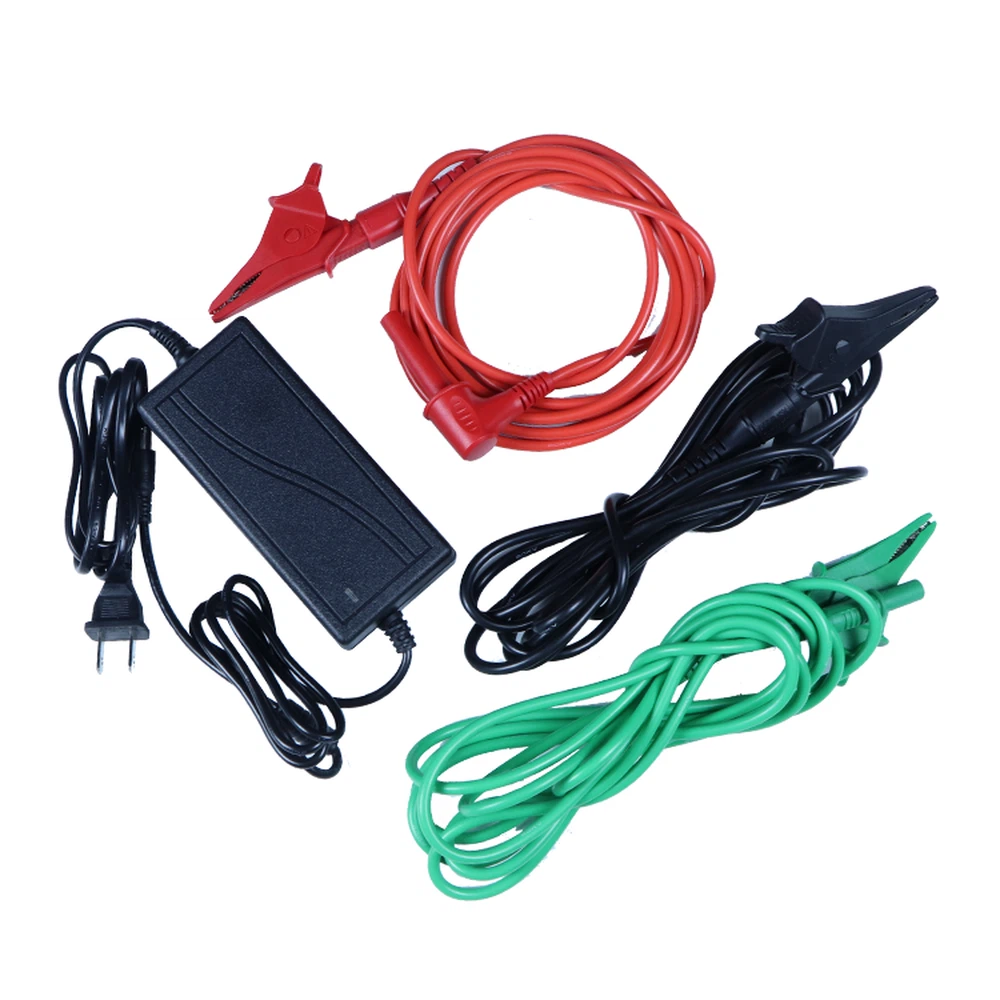

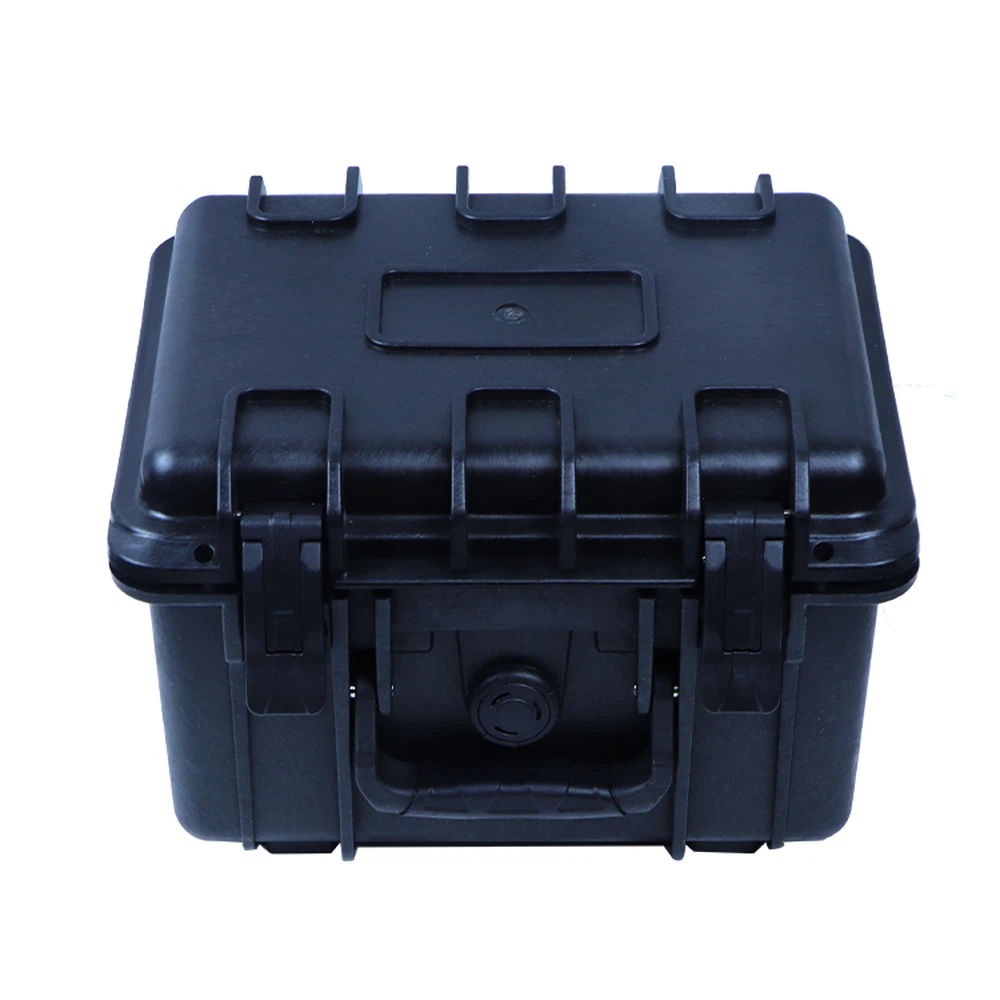

FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees for one year and lifetime technical support for you. Online response to customers' technical problems.
