Product Introduction

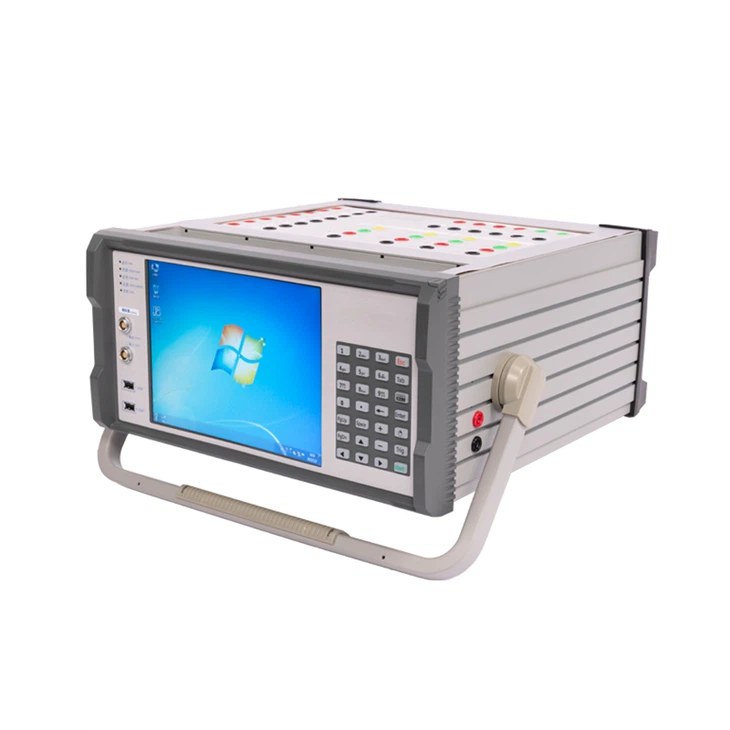

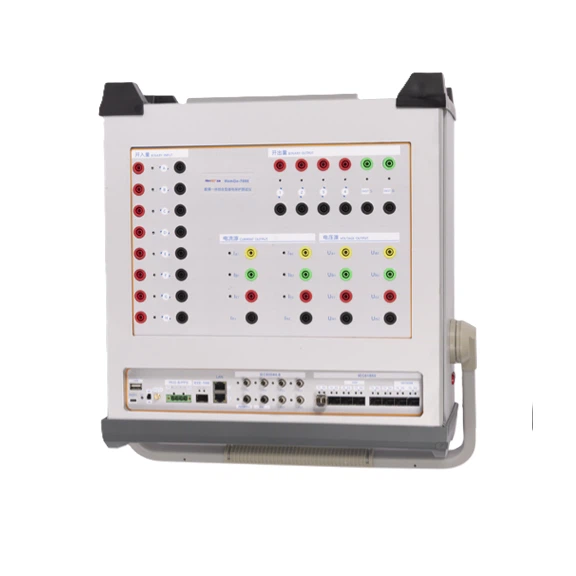

HY7000 6 Phase Protection Relay Tester
The HY7000 6 PHASE RELAY TESTING KIT is a relay protection test device designed in accordance with the technical specifications outlined in the "DL/T 624-2010 Technical Specifications for Microcomputer-based Relay Protection Test Equipment". It is based on the IEC61850 communication standard system and implemented using advanced computer technology.
The product is equipped with a high-performance power amplifier and built upon a powerful PowerPC + X86 platform. Utilizing a modular design, it features high functionality, high precision, compact size, and light weight. It can perform functional and performance tests on relay protection devices, measurement and control devices, and intelligent terminals, making it suitable for use in power plants, substations, various scientific research institutions, and device manufacturers.
Product Parameter
|
AC Voltage Source Output * (Note: Maximum output for some models is 120V/125V/130V/150V; refer to the actual device/software prompt.) |
||
|
Range |
6 channels, 130V/60VA each |
|
|
Accuracy |
0V~2V: ±4mV; 2V~130V: ±0.1% |
|
|
Resolution |
1mV |
|
|
AC Current Source Output * (Note: Maximum output for some models is 30A/35A/40A; refer to the actual device/software prompt.) |
||
|
Range |
6 channels, 40A/250VA each (optional 450VA) |
|
|
Accuracy |
0~500mA: ±1mA; 500mA~30A: ±0.1% |
|
|
Resolution |
1mA |
|
|
Phase |
||
|
Range |
0~360° |
|
|
Accuracy |
±0.1° |
|
|
Resolution |
0.1° |
|
|
Frequency |
||
|
Range |
0~2500Hz (Maximum output for some models is 1000Hz) |
|
|
Accuracy |
<±0.001Hz(0~65Hz) <±0.01Hz(65~450Hz) <±0.02Hz(450~2500Hz) |
|
|
Resolution |
0.001 Hz |
|
|
Time |
||
|
Range |
10ms~9999.999s |
|
|
Resolution |
1ms |
|
|
Digital Inputs |
||
|
Quantity |
8 pairs |
|
|
Input Voltage |
Accepts dry contacts or voltage-bearing contacts 0~250V |
|
|
Digital Outputs (Some models have 8 pairs, including 6 fast-acting outputs) |
||
|
Quantity |
6 pairs, including 4 fast-acting outputs (action time < 0.1ms) |
|
|
Breaking Capacity |
DC250V /0.5A |
|
|
DC Voltage Source Output * (Note: Maximum output for some models is 160V; refer to the actual device/software prompt.) |
||
|
Range |
Each channel: -175~175V/60VA |
|
|
Accuracy |
0V~2V: ±4mV; 2V~175V: ±0.2% |
|
|
DC Current Source Output |
||
|
Range |
Each channel: 0~20A/200VA |
|
|
Accuracy |
0~500mA: ±2mA; 500mA~20A: ±0.1% |
|
|
Synchronization |
||
|
Interface Type |
GPS/BD ANT, IRIG-B/PPS Optical Signal; IRIG-B/PPS Electrical Signal; IEEE 1588 |
|
|
Quantity |
GPS/BD ANT: 1; IRIG-B/PPS Optical Signal: 2 (1 for time synchronization, 1 for timing); IRIG-B/PPS Electrical Signal: 2 pairs (1 pair for time synchronization, 1 pair for timing); IEEE 1588: 1 pair |
|
|
Wireless Connectivity |
||
|
Interface Type |
WiFi, (Optional 4G) |
|
|
Wired Connectivity |
||
|
Interface Type |
100M LAN Port, RJ45 |
|
|
Quantity |
2 |
|
|
Power Supply |
||
|
Supply Voltage |
AC 220V, Allowable deviation: -20%~20%; (Optional DC power supply 200V~380V) |
|
|
Supply Frequency |
AC power supply: 47~65 Hz ; DC power supply: 0 Hz |
|
|
IEC 61850 Communication Interface * |
||
|
Function |
Arbitrarily configurable as IEC 61850 9-1/9-2 SMV transmitting/receiving terminal or GOOSE transmitting/receiving terminal. |
|
|
Interface Type |
LC Optical Port |
|
|
Quantity |
8 pairs, 6 pairs are 100M adaptive, 2 pairs are 100/1000M adaptive |
|
|
Wavelength |
1310nm |
|
|
IEC 60044 Communication Interface * |
||
|
Function |
Reception and transmission of IEC60044-7/8, DL/T282 messages |
|
|
Interface Type |
ST |
|
|
Quantity |
6 transmitting ports, 2 receiving ports |
|
|
Analog Low-Level Signal Input |
||
|
Interface Type (Optional) |
Aviation connector, AC voltage 0-7V |
|
|
Quantity |
12 channels |
|
|
Analog Low-Level Signal Output |
||
|
Interface Type (Optional) |
Aviation connector, AC voltage (or current) can be customized. |
|
|
Quantity |
12 channels, AC voltage 0-7V / DC current 0-20mA |
|
|
USB Port * |
||
|
Quantity |
3 |
|
|
Operating Environment Conditions |
||
|
Operating Temperature |
-10℃~50℃ |
|
|
Humidity |
≤95%, Non-condensing |
|
|
Other |
||
|
Online Interface |
RJ45 |
|
|
Display |
10.4-inch True Color LCD Display with Touch Function |
|
|
Auxiliary Voltage Output (Optional) |
110/220V DC output on the side of the chassis, output power: 200W |
|
|
Dimensions |
460mmx212mmx436mm(L x W x H) |
|
|
Weight |
18kg |
|
Product Feature And Application
1. Intelligent Test Module
Supports intelligent test template editing. Test items can be added freely during the test and saved as reusable test project files, improving testing efficiency during later periodic inspections and defect elimination phases.
2. Automatic Testing
Features automatic testing functions for on-site protection and digital protection, allowing completion of all test items for a single protection device with one click.
3.Digital/Analog Output
Capable of testing protection devices, measurement and control devices, and intelligent terminals in digital substations, as well as testing analog protection devices, generator-transformer units, etc.
Simultaneous Analog and Digital Output
Supports the simultaneous output of analog signals, SV, FT3, and the transmission/reception of GOOSE messages.
4. Multiple Scan Modes
Supports manual or automatic testing of amplitude, phase, frequency, impedance, vector, ordinal quantity, and power. Also supports automatic change tests in ramp, slip, and comprehensive modes.
5. Safety and Alarm
Features overheat and overcurrent protection. The current source has open-circuit protection and alarm functions, and the voltage source has overload and short-circuit protection functions.
6. Graphical Virtual Terminal Display
Supports graphical display of virtual terminals, providing a clear and intuitive view of data flow.
7. Simultaneous Message Transmission and Reception
Supports IEC61850-9-1, IEC61850-9-2, and GOOSE optical digital message output. GOOSE signals can be transmitted/received independently or shared via the same optical Ethernet interface as IEC61850-9-2.
8. FT3/Extended FT3
Supports FT3, extended FT3, and DL/T 282 message output.
Supports 2M/4M/6M/8M/10M/15M/20M baud rates for UART encoding and 5M/10M/20M for Manchester encoding.
9. Anomaly Testing
Capable of simulating message anomalies, including quality anomalies, transmission frequency jitter, delay anomalies, packet loss, loss of synchronization, sequence number jumps, maintenance mode, and state false change.
10. Fault Playback
Supports fault simulation and COMTRADE format data playback functions.
11. MMS Service
Features MMS set value read/write function, allowing access to configuration information such as set values of intelligent IED devices.
12. Time Synchronization and Timing
Features synchronous triggering functionality. Supports direct connection to GPS/BD antennas for time synchronization, as well as IRIG-B, PPS, and PTP 1588 time synchronization methods. Can also output IRIG-B, PPS, and PTP 1588 timing signals externally.
13. Hardwired Contact Inputs and Outputs
Digital inputs are active/passive adaptive contacts, automatically identifying input type and voltage. Channels are isolated from each other, with alarm prompts for reverse polarity connection.
14. Message Reception and Analysis
Features message reception and analysis capabilities. Received messages can be opened with ZHNDA for analysis or exported.
15. Single-Fiber Mode
Optical ports support single-fiber transmission and single-fiber reception. Supports optical power testing.
16. Analog Low-Level Signal
Equipped with analog low-level signal interfaces. Supports 12 channels of analog low-level signal input, capable of measuring -7V to 7V AC voltage. Supports 12 channels of analog low-level signal output, capable of outputting -7V to 7V AC voltage.
17. Touch Operation
Equipped with a 10.4-inch high-resolution display screen supporting touch operation.
18. Wireless Connectivity
Provides 4G remote testing functionality and includes a WiFi module for user convenience.
Accessory
|
order number |
specifications and models |
quantity |
unit |
|
1 |
Relay Protection Tester Main Unit UV1.1 |
1 |
Table |
|
2 |
Test signal line-(4*4mm²*1)*3m yellow-green-red-black (opening 30cm, with retractable protective sleeve) |
2 |
group |
|
3 |
Test signal line-(4*1.6mm²*1)*3m yellow-green-red-black (opening 30cm, with retractable protective sleeve) |
2 |
group |
|
4 |
Test signal line-2.5mm² yellow-green, 3 meters (with retractable protective sleeve) |
1 |
group |
|
5 |
Cable – Analog 14-pin aviation plug cable, 1.0 m (TGG) |
1 |
root |
|
6 |
Test plug-crocodile clip (10mm clip) yellow 2 green 2 red 2 black 6+U-type fork (5mm insert) yellow 2 green 2 red 2 black 6+isolation needle (Φ2 needle-shaped plug) red 6 black 6 |
1 |
Set |
|
7 |
Power cord-D1-3/D003-4-3*0.75/1.8 meters/Black |
1 |
root |
|
8 |
Crossed network cable – RJ45-RJ45 1.5M |
1 |
root |
|
9 |
Optical Module-GTLS-1303-2MIL |
1 |
individual |
|
10 |
Terminal-PGF-508-4P (000) |
1 |
individual |
|
11 |
Test signal line-JBF4MM2×0.25M yellow |
2 |
twig |
|
12 |
Test signal line-JBF4MM2×0.25M green |
2 |
twig |
|
13 |
Test signal line-JBF4MM2×0.25M red |
2 |
twig |
|
14 |
Test signal line-JBF4MM2×0.25M black |
2 |
twig |
|
15 |
Wire coil-36 cm (length) *19 cm (width) *25 cm (height) |
1 |
individual |
|
16 |
Aluminum alloy protective box-Protective box-516x326x516 (custom aluminum alloy) -Gray-Contains inner foam padding-No silk screen printing on front and back surfaces of the box body, silk screen printing on both left and right sides |
1 |
individual |
|
17 |
DC power supply cable |
1 |
root |
|
18 |
Packing list, Receipt confirmation form, Certificate of conformity |
1 |
Set |
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and a convenient payment method
3. Sales service: 24-hour online contact, choose the right model of equipment according to your request, give the best offer, and support customization
4. Warranty period: All machines come with guarantees one guarantee of lifetime technical support for you. Online response to customers' technical problems.
Production Line for Relay tester

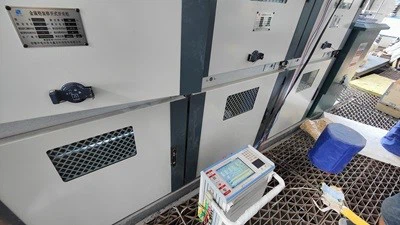

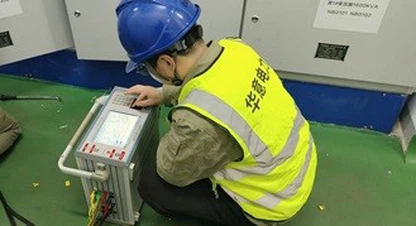

On Site Service
