FAQ 1: What is the required test voltage for 11kV cable withstand testing according to IEC 60502-2?
Answer: According to the IEC 60502-2 standard, the AC withstand test voltage for cables with a rated voltage of 11kV (U0=11 kV) is calculated as 3×U03×U0. Therefore, for a standard 11kV cable, the required test voltage is 33kV. Using a 60kV VLF AC Hipot Test Set provides more than enough overhead to meet this standard while ensuring the safety of the equipment and the operator.
FAQ 2: Why is the VLF (Very Low Frequency) method mandatory for modern XLPE cables?
Answer: International standards, including IEC 60502-2 and IEEE 400.2, recommend the AC VLF method (typically 0.1Hz) over traditional DC testing for XLPE (Cross-Linked Polyethylene) cables. DC testing can cause "space charge" accumulation in the insulation, which may lead to premature cable failure after it is returned to service. VLF testing provides a true AC stress test that effectively detects insulation defects without causing harmful polarization.

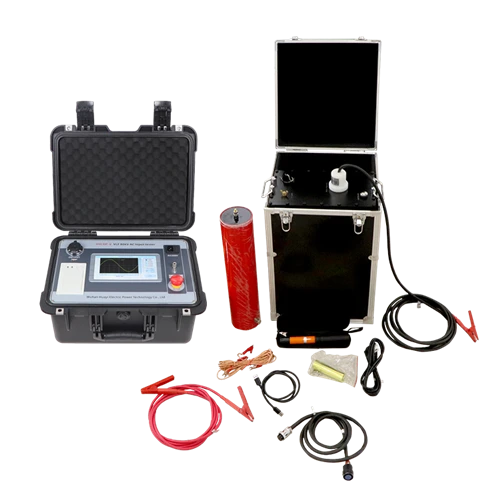

FAQ 3: Can I use the 60kV VLF Test Set for both 11kV and 33kV cable systems?
Answer: Yes. A 60kV VLF AC Hipot Test Set is highly versatile. Since an 11kV cable requires a 33kV test and a 33kV cable (U0=19 or 20 kVU0=19 or 20 kV) typically requires a test voltage near 57kV or 60kV, this specific unit is the "sweet spot" for utility contractors. It allows you to cover the two most common distribution voltage classes with a single, portable device.
FAQ 4: How does the "33kV Test Voltage" rule apply to newly installed vs. in-service cables?
Answer: IEC 60502-2 primarily addresses the "After Installation" (commissioning) phase, requiring 3U03U0 (33kV for 11kV cables). For maintenance or "in-service" testing of older cables, some utilities may reduce the voltage to 2U02U0 or 2.5U02.5U0 to prevent overstressing aged insulation. However, for a successful handover of a new project, achieving the 33kV VLF target is the industry gold standard for reliability.
FAQ 5: What are the benefits of the 0.1Hz frequency used in your 60kV VLF unit?
Answer: The 0.1Hz frequency is the "physical magic" that makes the equipment portable. At 50Hz, testing a long 11kV cable would require a massive transformer because of the high capacitance. By reducing the frequency to 0.1Hz, the charging current requirement is reduced by 500 times. This allows our 60kV VLF Hipot Test Set to be compact enough for field use while still delivering a pure sinusoidal waveform that meets strict metrology requirements.
