Product Introduction
XZB-1800KVA 300KV AC Resonant Test System
Tested application and requirement
AC voltage withstand test for 170kV GIS, test frequency 30~300Hz, test voltage not more than 275KV, test time 1min
AC voltage withstands test for cable 1000mm2, 100m, test voltage is not more than 150KV. Test frequency 30~300Hz, test time 60min.
Work condition
environment temperature：－100C –50 0C;
relative humidity：≤90%RH
altitude: ≤1000m
Main technical parameters and functions
rated capacity：1800kVA;
input power： 3 phase 380V, 50Hz;
rated voltage：150KV 300KV;
rated current： 12A; 6A
working frequency：30-300Hz;
output waveform： sine wave
waveform deviation factor: Distortion rate of output voltage waveform≤1%;
working time： underrated load allowed continuous working 60min; over voltage 1.1 times 1min;
Temperature rise： underrated load allowed continuous working 60min, after that temperature rise≤65K
quality factor： Q≥30(f=45Hz)
defensive function: Over-current, over-voltage, and flashover protection are provided for the tested product (see frequency conversion power supply for details).
accuracySystem effective value 1.5
AC resonant test system operation video
Product Parameter
1800kVA/300kV test system is design 2 reactors, and 900kVA/150kV/6A/110H for single reactor.
|
Combination Test object |
Reactor 900kVA/150kV/6A/110H*2 |
Excitation transformer output selection |
Test voltage (kV) |
|
170KV GIS |
Connect 2 reactors in series |
16kV |
≤275kV |
System and parameters
exciting transformer JLB-50kVA/4/8/16kV/0.4kV 1set
rated capacitance：50kVA;
input voltage：0-400V,single phase;
output voltage：4/8/25kV
Structure： dry type;
weight：260kg;
variable frequency power supply BPY-50kW/380V 1 set
Rated output capacity：50kW
Power supply for working： 380±10%V(3phase),power frequency
output voltage：0 –400V,single,
Rated input current：125A
rated output current：125A
Voltage resolution： 0.01kV
Accuracy of voltage measurement：1.5%
Frequency range：30 – 300Hz
Frequency control resolution：≤0.1Hz
frequency stability： 0.1%
Running time： Continuous at rated capacity 5min
Continuous at rated capacity 5minmax temperature of components≤65K
The noise level：≤50dB
Weight: About 35kg
HV reactor DK-900kVA/150kV 2 nos
Rated capacitance：900kVA;
Rated voltage：150kV;
Rated current：6A;
inductance：110H /nos
quality factor：Q≥30 (f=45Hz);
Structure: Oil type;
weight: about 1000kg;
capacitive voltage divider FRC-300kV/1500pF 1 set
Rated voltage：300kV;
HV capacitance：1500pF;
dielectric loss：tgσ≤0.5%;
ratio of voltage divider：3000：1
measurement accuracy: active value 1.5
weight: about 30kg;
Product Feature And Application
configuration equipment list
|
no |
name |
Model and specification |
unit |
Qty |
remark |
|
1 |
Exciting transformer |
JLB-50kVA/4/8/16kV/0.4kV |
set |
1 |
|
|
2 |
variable-frequency power supply |
BPY-50kW/380V |
set |
1 |
|
|
3 |
High voltage reactor |
DK-900kVA/150kV |
set |
2 |
|
|
4 |
capacitive voltage divider |
FRC-300kV/1500pF |
set |
1 |
|
|
6 |
Internal connection wires |
set |
1 |
Documents list
|
No |
name |
unit |
qty |
remark |
|
1 |
Ex-Factory test report |
copy |
1 |
|
|
2 |
manual |
copy |
1 |
|
|
3 |
Product certificates and customer comment CARDS |
set |
1 |
Prodection Details
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees you one year of lifetime technical support. Online response to customers' technical problems.
Production Line

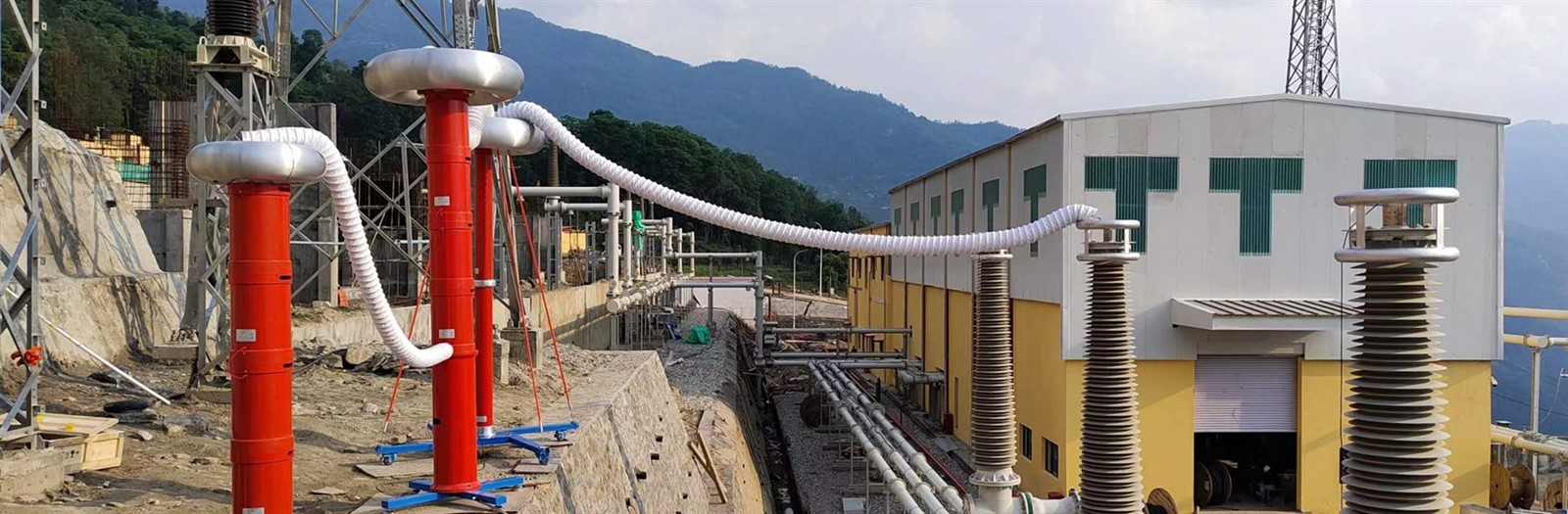

Onsite test cases
