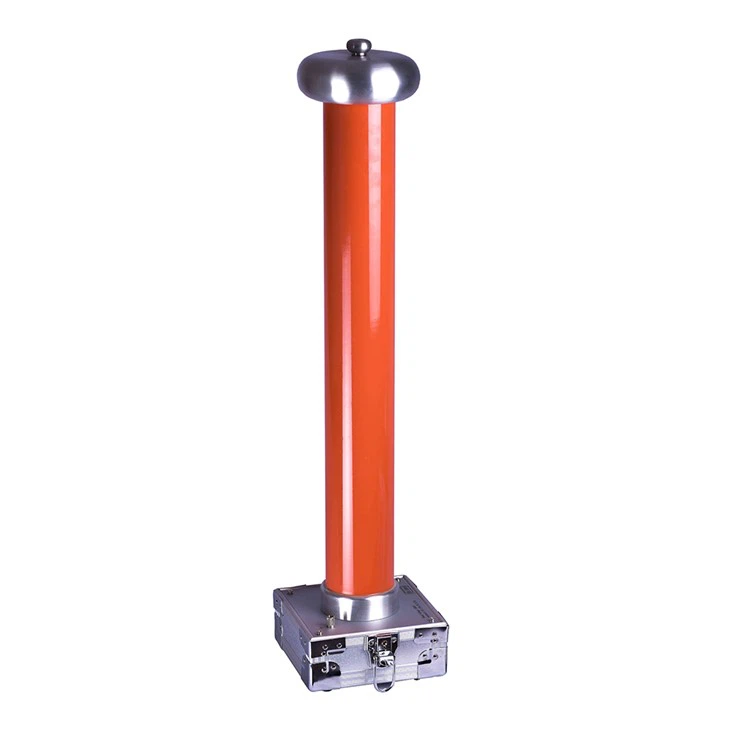

300KV AC-DC KILOVOLT METER

FRC-300KV AC-DC KILOVOLT METER

This product is an ideal device for HV measuring; mostly applied in power systems, and electronic equipment factories to test frequency AC high voltage and DC high voltage.

This product is composed of an HV divider and an LV display meter. The two parts are connected by the supporting cable.

This product is composed of an HV measuring part and an LV display instrument. They use supporting cables to connect.

It is also called High voltage meter, High voltage digital meter, voltage divider, resistance-capacitance divider, electrostatic voltmeter, high voltage divider, AC and DC divider, AC and DC high voltage meter, AC and DC high voltage divider.

High voltage divider operation video

1. High precision

Adopt precision high-voltage film capacitors and precision glass glaze resistors, high input impedance, reducing the test current, low power consumption, improve the instrument's measurement precision and stability;

The signal processing part, uses high-performance OP to amplify the signal, using the latest technology dual integral AD sampling, four semi-liquid crystal displays, the highest resolution reaches 0.001kV, it is the upgrading production of static high voltage meter.

2. Good anti-jamming performance

Adopt special shielding technology. The surface of the equalizing ring is smooth and glossy, effectively improving the electric field distribution around the equalizing ring to prevent point discharge and improve the anti-jamming capability of measurement data. The voltmeter adopts all-metal enclosed structure shielding, using high-quality coaxial cable to connect the HV divider with the voltmeter, reducing the impact of HV on the indication values, to achieve high stability, and high linearity.

3. Safe and reliable

The instrument is composed of a high-voltage divider and voltmeter, a high voltage divider using DuPont filling materials, a special casting process, is smaller in structure, lighter in weight, to minimize internal partial discharge, and has higher reliability. There is no leakage problem. When working, use high-quality coaxial cable to connect the HV divider with the voltmeter, safe and reliable.

4. Simple operation

Adopt a DIP switch to switch high voltage and low voltage, AC and DC, convenient and quick. Four semi-liquid displays directly show measurement results, simple and intuitive. It is convenient for on-site testing work.

5. Easy to carry

 Small in size, light in weight, easy to carry, easy to use.

1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and payment way you convenient
3. Sale service: 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees for one year and lifetime technical support for you. Online response to customers' technical problems.
