Product Introduction
The FRC series AC and DC digital high voltage meter is the ideal equipment for high voltage measurement, mainly used in power systems and electrical and electronic equipment manufacturing departments to measure power frequency AC high voltage and DC high voltage. The FRC series AC and DC digital high voltage meter consists of two parts: a high voltage divider and a low voltage display meter, which are connected by supporting cables
This product is composed of an HV measuring part and an LV display instrument. They use supporting cables to connect.
It is also called, AC-DC resistance and capacitance divider, an AC-DC number Word voltage divider, kV voltmeter, kV meter, FRC type AC voltage divider.
high voltage divider operation video
Product Parameter
|
Model |
FRC-150KV |
|
Divider resistance |
1800 MΩ |
|
Voltage class of Voltage divider |
AC：150kV DC：150kV |
|
LV display meter range |
Low：0-20kV High：0-150kV |
|
AC measurement |
True RMS measurement |
|
Accuracy |
AC：1.0% DC：0.5% |
|
Dielectric |
U.S. DuPont Dry media material |
|
Divider ratio |
1000：1 |
|
Connection coaxial cable |
4m |
|
Temperature |
0~40℃ |
|
Relative humidity |
≤85%RH |
|
Size |
250*250*1100 |
|
Weight |
15KG |
Product Feature And Application
1. High precision
Adopt precision high-voltage film capacitors and precision glass glaze resistors, with high input impedance, reducing the test current, low power consumption, improve the instrument's measurement precision and stability;
The signal processing part uses high-performance OP to amplify the signal, using the latest technology dual integral AD sampling, four semi-liquid crystal displays, and he highest resolution reaches 0.001kV, it is the upgraded production of a static high voltage meter.
2. Good anti-jamming performance
Adopt special shielding technology. The surface of the equalizing ring is smooth and glossy, effectively improving the electric field distribution around the equalizing ring to prevent point discharge and improve the anti-jamming capability of measurement data. The voltmeter adopts an all-metal enclosed structure shielding, using high-quality coaxial cable to connect the HV divider with the voltmeter, reducing the impact of HV on the indication values, to achieve high stability and high linearity.
3. Safe and reliable
The instrument is composed of a high-voltage divider and voltmeter, a high voltage divider using DuPont filling materials, a special casting process, is smaller in structure, lighter in weight, to minimize internal partial discharge, and has higher reliability. There is no leakage problem. When working, use a high-quality coaxial cable to connect the HV divider with the voltmeter, safe and reliable.
4. Simple operation
Adopt a DIP switch to switch high voltage and low voltage, AC and DC, convenient and quick. Four semi-liquid displays directly show measurement results, simple and intuitive. It is convenient for on-site testing work.
5. Easy to carry
Small in size, light in weight, easy to carry, easy to use.

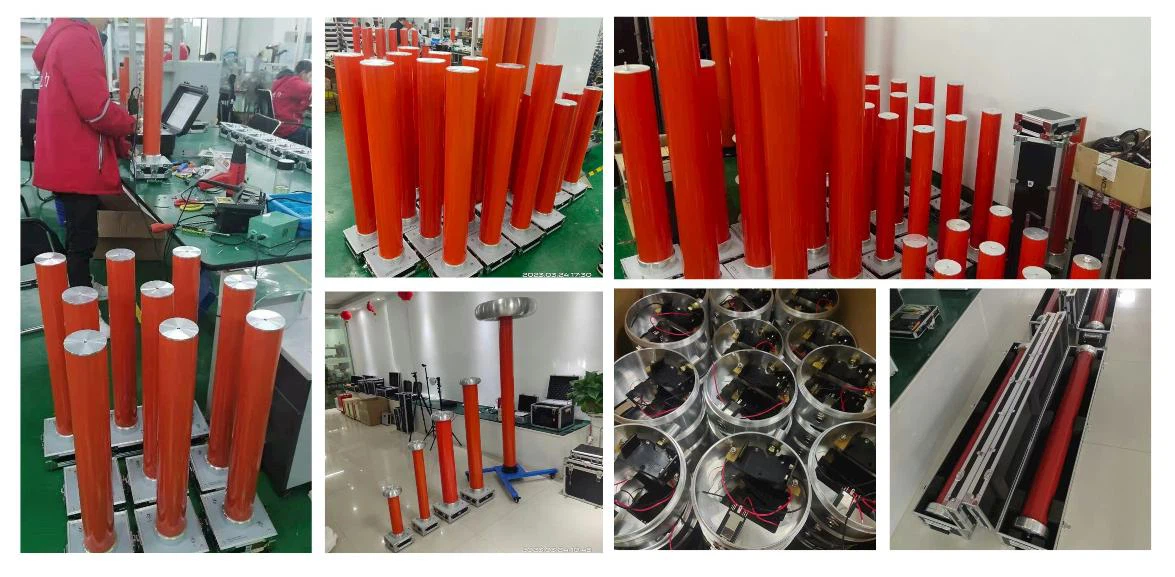

Prodection Details
Accessory
|
Number |
Name |
Amount |
|
1 |
Voltage divider |
one |
|
2 |
Display Instrument |
one |
|
3 |
Signal line |
one |
|
4 |
Ground lead |
one |
|
5 |
Specification |
one |
|
6 |
Inspection Report |
one |
|
7 |
Certification |
one |
FAQ
1. Delivery： Fast delivery and Flexible mode of transportation
2. Payment: Choose payment terms and a convenient payment method
3. Sales service: 24-hour online contact, choose the right model of equipment according to your request, give the best offer, support customization
4. Warranty period: All machine quality guarantees for one year, and lifetime technical support for you. Online response to customers' technical problems.
