Product Introduction

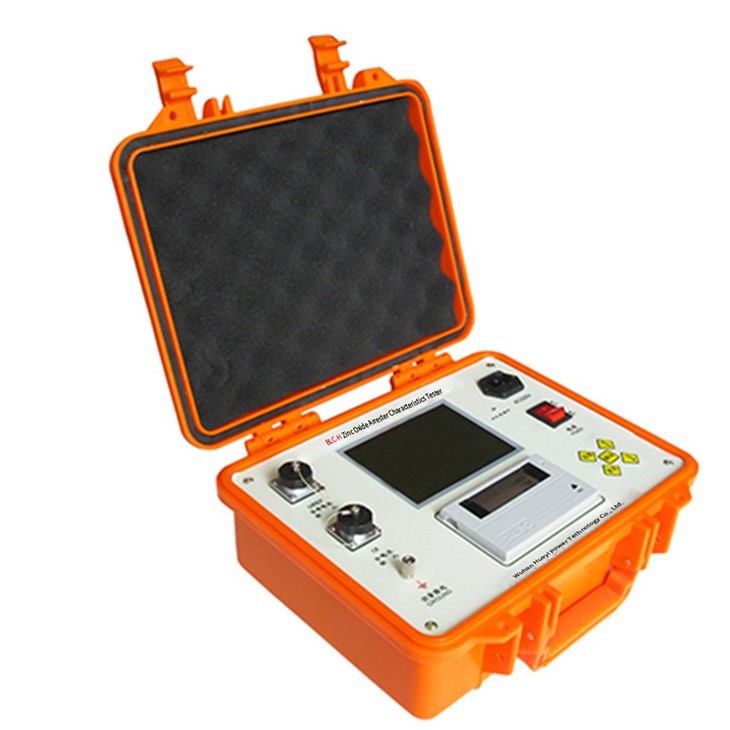

BLC-H Portable Zinc Oxide Arrester Tester adopts microcomputers for sampling, control, and other advanced technologies. It can measure the full current, third harmonic, resistive current, resistive peak current, capacitive current, and active power of the zinc oxide arrester under power frequency voltage. Display and print the waveform of voltage and current. Adopt a large LCD screen with a menu, making the man-machine exchange function stronger, and providing field wiring display. Easy to wire, high accuracy, strong reliability. It can measure zinc oxide arrester under power frequency voltage full current, third harmonic, resistive current, resistive current peak, capacitive current, active power, and so on. And display voltage, current waveform, and printout.
Product Parameter
BLC-H Portable Zinc Oxide Arrester Tester parameters:
|
Reference voltage input range (peak value) |
10V～200V(0-250V customized) |
|
Full leakage current measurement range (peak value) |
100uA～8mA (0-20mA customized) |
|
Resistive current measurement range (peak value) |
100uA～8mA (0-20mA) |
|
Capacitive current measurement range (peak value) |
100uA～8mA(0-20mA) |
|
Angle measurement range |
0°～90° |
|
Power consumption |
4W |
|
Accuracy |
±( reading×5% +5d)(harmonic wave current < 2mA) |
|
AC power supply |
AC220V ±10%,50Hz ±1% |
Product Feature And Application
BLC-H Portable Zinc Oxide Arrester Tester features:
1. Large screen LCD, menu operation, easy to use.
2. High-precision sampling and processing circuit, advanced Fourier harmonic analysis technology, to ensure more reliable data;
3. The instrument uses a unique high-speed magnetic isolation digital sensor to collect input voltage and current signals directly, which ensures the reliability and safety of data.
4. It has the functions of resistive current base peak output, edge phase correction, etc.
5. The instrument has a calendar clock and a micro printer to store measurement data. discharging rod
Accessory
|
Serial Number |
Name |
Amount |
|
1 |
Mainframe |
one |
|
2 |
Voltage signal sampling line |
one |
|
3 |
Current signal sampling line |
one |
|
4 |
Power line |
one |
|
5 |
Fuse |
two |
|
6 |
Special protector |
one |
|
7 |
Printing paper |
two |
|
8 |
Specification |
one |
|
9 |
Inspection Report |
one |
|
10 |
Certification |
one |
