Product Introduction
To obtain a test transformer with a higher voltage, a cascade method can also be adopted to achieve a higher voltage.
Figure 2 shows the principle wiring diagram of the three-stage series test transformer. The relationship between the capacity and voltage of three of the transformers is satisfied： P1=2P2=3P3,U(total)=U1+U2+U3S,
The test system mainly includes the above 4 parts： oil-immersed test transformer YDJ-20KVA/120KV,YDJ-10KVA/120KV, matching TCJH-20KVA control unit,240KV insulating support, please check below parameters
Product Parameter
1. Oil immersed test transformer(first cascade)
Model：YDJ-20KVA/120KV 1set
parameters：
capacity：20KVA
Input voltage：2 phase AC:200V 50Hz
Input current：100A
Output voltage：AC：120KV output current：:160mA cascade voltage 200V
Meter voltage：100V
No-load current accounts for the rating：≤6％
impedance：8.4％
Working form: intermittent short-time working, oil cooling.
Shape: Iron shell octagonal structure with movable casters at the bottom.
Surface coating: internationally popular light gray
2. Oil-immersed test transformer：(second cascade)
model：YDJ-10KVA/120KV 1set
parameters：
capacity：10KVA
Input voltage：2 phase AC:200V 50Hz
Input current：:50A
Output voltage：AC 120KV output current：100mA Meter voltage：100V
No-load current accounts for the rating：≤6％
impedance：8.4％
Working form: intermittent short-time working, oil cooling.
Shape: Iron shell octagonal structure with movable casters at the bottom.
3. voltage control unit：
Model：TCJH-20KVA 1 SET
capacity：20KVA control unit
Main parameter：
Input voltage： AC:380V 50Hz
Input current：50A
Output： AC0～450V 50A
Work form: intermittent short-time work
Main functions: high voltage indicator, low voltage current indicator, voltage timing setting and timing alarm, low voltage overcurrent protection and setting, zero start protection, start, stop, timing,
Product Feature And Application
1. The high-voltage tail, grounding column, one end of the instrument terminal, and one end of the input terminal of the 10KVA test transformer must be connected with wires, but must not be connected to the ground.
2. If there is no cascade high-voltage output, the A and B lines connected to the 20KVA test transformer and the 10KVA test transformer can be cross-switched. The polarity of the like-name terminals of a general transformer is usually marked with terminals of the same color.
Accessory
|
No |
Product name |
Model |
unit |
Qty |
remark |
|
1 |
Control unit |
TCJH-20kVA/0.22kV |
set |
1 |
|
|
2 |
Cascade test transformer |
YDJ-20kVA/120kV/0.2kV |
set |
1 |
|
|
3 |
Test transformer |
YDJ-10kVA/120kV/0.2kV |
set |
1 |
|
|
4 |
120KVinsulation support |
60KV |
set |
1 |
|
|
3 |
Connecting cables |
Based on needs |
set |
1 |
|
|
6 |
Accessories and shield ring |

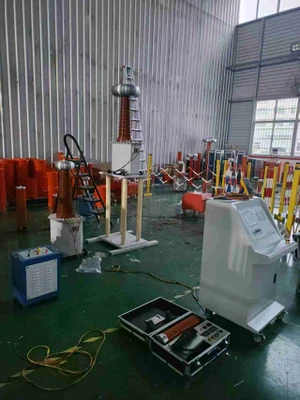

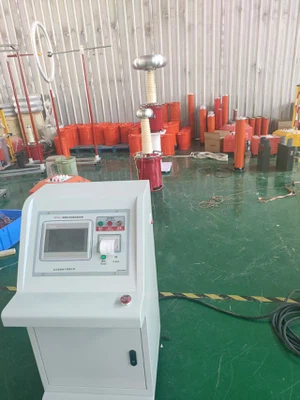

Test onsite
